Push - In Air Fitting, Union Y, 1/4" Tube OD, Camozzi 6560 04 - 00 - UnitedBuilt Equipment

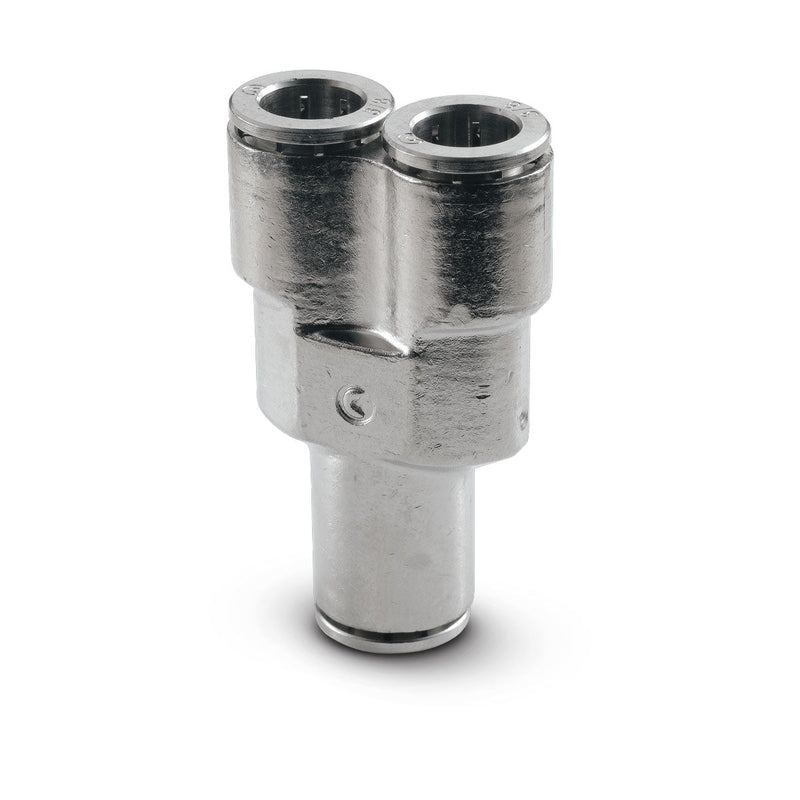

Camozzi 6560 04-00 Equal Union Y, 1/4" Tube OD

UGC 0012573
par Camozzi
Disponibilité:
55 en stock | En stock
$0.00 - $0.00
$0.00
$6.50
$6.50 - $6.50
$6.50

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

The Camozzi 6560 04-00 equal union y connects 1/4-inch outside-diameter pneumatic tubing through 3 push-in ports. Branches three equal-size tube lines without a threaded adapter.

Use this Series 6000 inch fitting when repairing or routing compatible compressed-air control lines, including pneumatic controls on water truck equipment. Match the exact tube diameter and fitting layout to your system; 1/4-inch OD tubing is not interchangeable with 6 mm tubing. This union connects tubing directly and does not provide a pipe-thread connection.

Simple connections for pneumatic tube routing

The push-in connection helps simplify tube changes during installation and service. Select this equal union y for the connection direction and number of air lines you need, rather than adding an unrelated adapter to change the layout.

Feature Benefit
Push-in tube connections Connect and release compatible tubing without a compression nut.
Equal union Y Branches three equal-size tube lines without a threaded adapter.
Nickel-plated brass body and collet Provides a metal fitting for compatible pneumatic control-line connections.

Technical specifications

Specification Details
Manufacturer Camozzi
Manufacturer part number 6560 04-00
Series 6000 inch
Configuration Equal union Y
Tube outside diameter 1/4 inch
Push-in tube ports 3
Pipe thread No threaded ports
Body and collet Nickel-plated brass
Standard O-ring NBR
Medium Compressed air
Operating pressure — North American inch configuration 0–250 PSI; selected tubing and system-component limits also apply.

Before ordering

Check Selection guidance
Tube selection Confirm 1/4-inch OD and a compatible pneumatic tube material; check the tubing pressure and temperature limits.
Connection layout Confirm the number of tube branches and clearance for the equal union y.
Operating conditions Do not exceed 250 PSI or the lower pressure limit of the selected tubing and other system components. Confirm temperature compatibility and any applicable tubing derating before use.
Application Use for compatible pneumatic controls; do not assume air-brake certification or suitability for water or hydraulic service.
Installation Isolate and depressurize the circuit before disconnecting tubing. Follow the fitting and equipment installation instructions.

Need help selecting the correct air fitting? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your tube size, threaded connection, and application.
