Monitor Harness 8494, Elkhart 36833100 - UnitedBuilt Equipment

Harnais de moniteur 8494, Elkhart 36833100

Name: Harnais de moniteur 8494, Elkhart 36833100
Brand: Elkhart Brass
SKU: 0007149
Price: 367.75 USD
Availability: InStock

UGC 0007149

par Elkhart Brass

Disponibilité:

6 en stock | En stock

Économisez 19%

$454.00

$454.00 - $454.00

$454.00

$367.75

$367.75 - $367.75

$367.75

Images du produit

Les images sont uniquement à titre de représentation et peuvent différer du produit réel.

La description

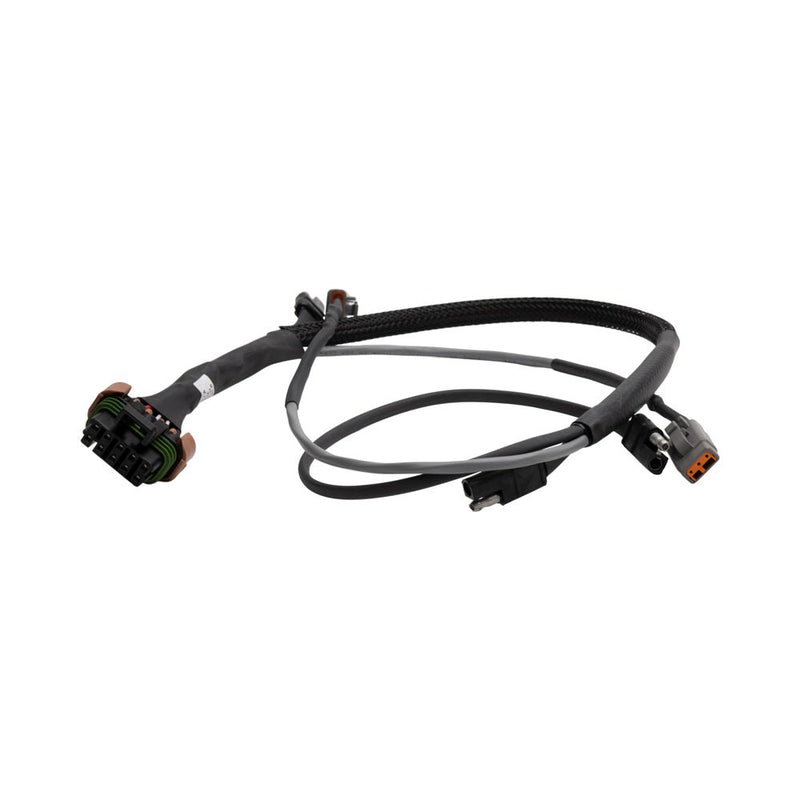

Elkhart 36833100 is a monitor control harness for documented 8494 Sidewinder electric-monitor service configurations. It connects within the monitor to the vertical and horizontal motors and sensors and to the nozzle motor.

This harness is also identified as one component of the prescribed retrofit for certain pre-2004 sensor systems. Confirm the existing sensor and harness configuration before ordering.

Product Identification

Attribute	Details
Manufacturer	Elkhart Brass
Part number	36833100
Component	Monitor control harness
Monitor family	8494 Sidewinder Electric

Harness Connections

Connection group	Function
Vertical motor	Monitor elevation drive connection
Horizontal motor	Monitor rotation drive connection
Position sensors	Vertical and horizontal sensor connections
Nozzle motor	Electric nozzle control connection

Compatibility Checks

Check	Requirement
Monitor	Confirm an 8494 Sidewinder electric monitor
Sensor generation	Identify the existing sensor and connector configuration
Retrofit use	Some pre-2004 conversions also require 36791200 and sensor components
Part number	Match 36833100 exactly

Installation Checks

Step	Guidance
Power	Disconnect monitor power before service
Routing	Protect the harness from heat, sharp edges, movement, and abrasion
Connectors	Align and fully seat each matching connector without forcing it
Functional test	Verify monitor, sensor, and nozzle functions after installation
