Turbine, dans le sens des aiguilles d'une montre (CW) pour 349M, Franklin 305462008

UGC 0007078
par Franklin
Disponibilité:
1 en stock | En stock
Économisez 20% Économisez 20%
$388.00
$388.00 - $388.00
$388.00
$310.50
$310.50 - $310.50
$310.50

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

Replacement CW impeller — not a complete pump.

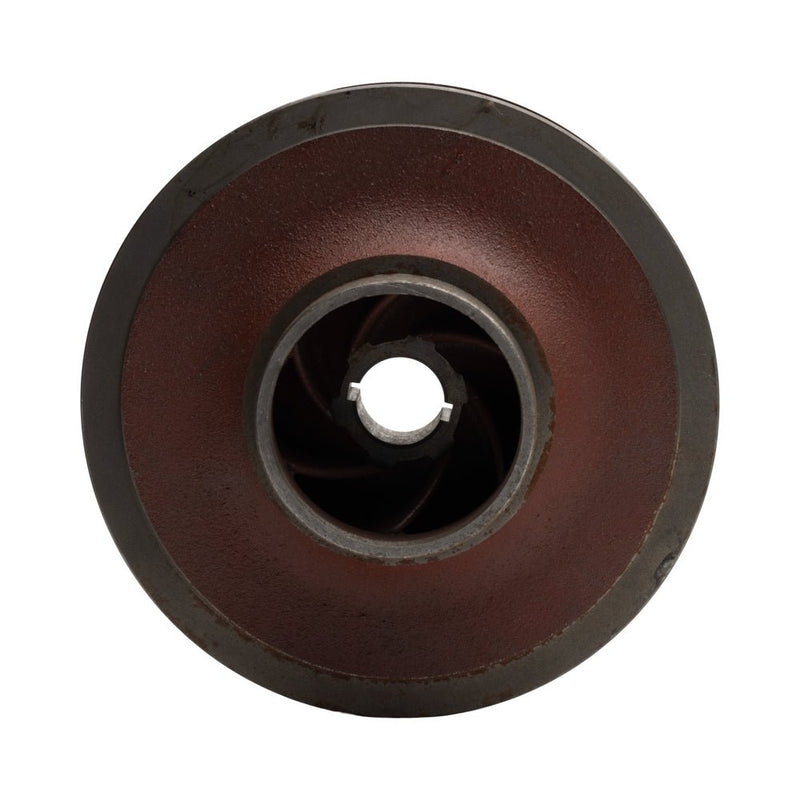

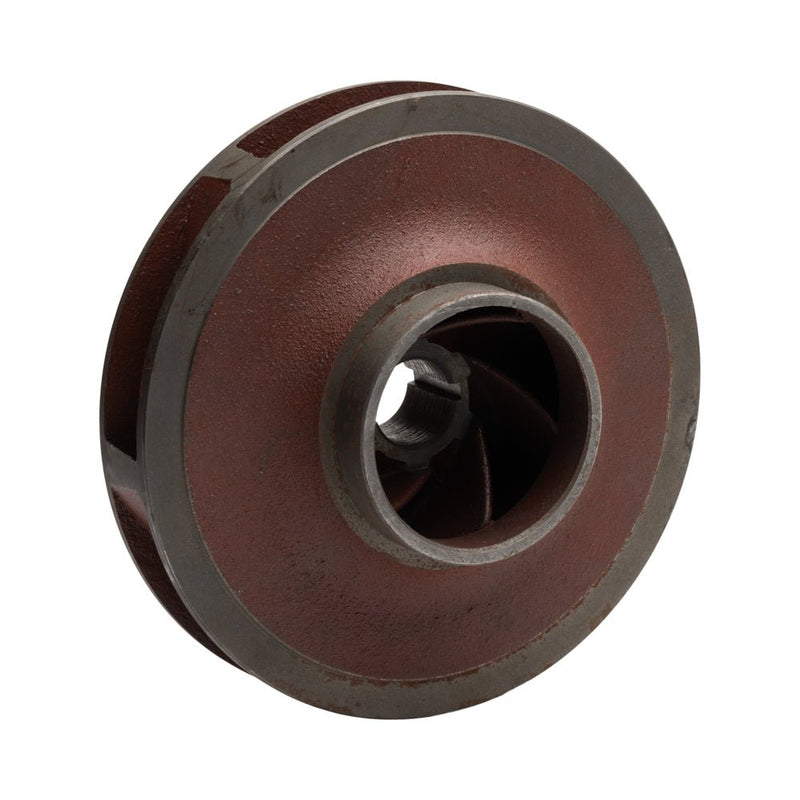

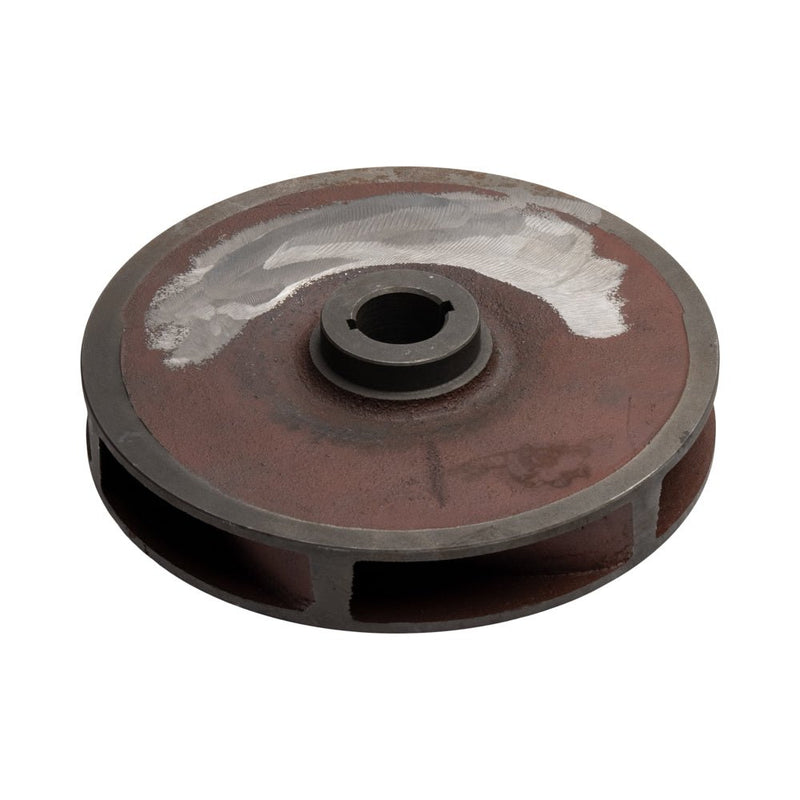

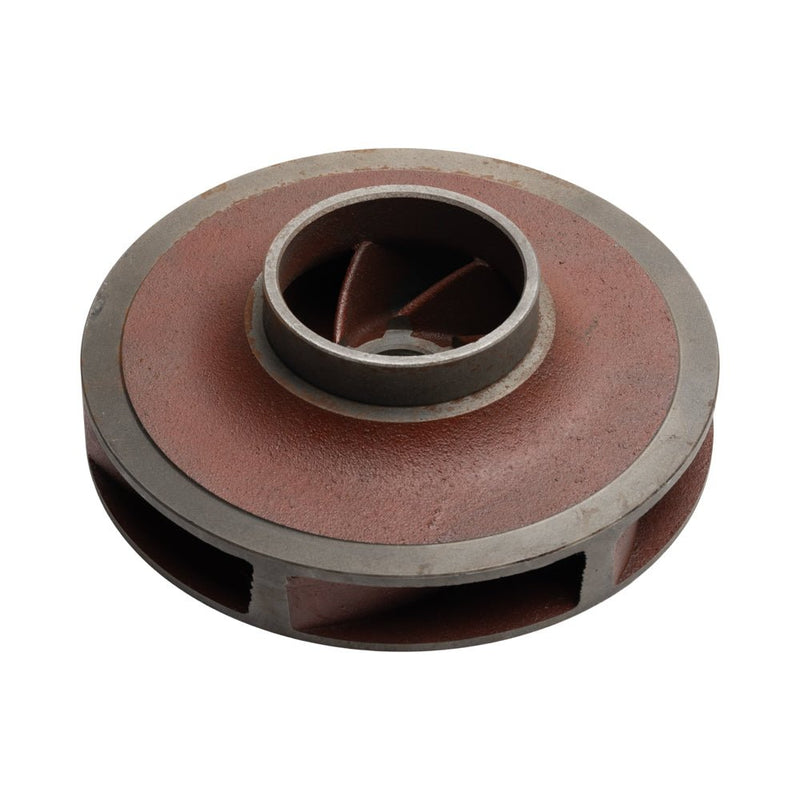

The Franklin XS439 CW impeller, part 305462008, is a service component for XS3x4-9 water truck pumps. This clockwise (CW) impeller is made from cast iron, ASTM-48 class 30.

Choose the impeller by exact part number and rotation, not by the pump family name alone. XS439 is a nominal 9-inch impeller family, but the required trim depends on the pump setup. Confirm the existing impeller trim and operating requirements before ordering; match the required trim to your pump setup.

Match rotation before replacing the impeller

Feature Benefit
Rotation-specific replacement Keeps component selection matched to the pump rotation and volute.
Individual impeller Service the impeller without selecting a complete replacement pump.

Technical specifications

Specification Detail
Manufacturer Franklin Electric
Manufacturer part number 305462008
Pump family XS439 / XS3x4-9
Component CW impeller
Rotation Clockwise (CW) viewed from shaft end
Material Cast iron, ASTM-48 Class 30

Before ordering

Check What to confirm
Pump identity Match the pump model and existing part number; do not select by appearance alone.
Rotation Confirm clockwise (CW) from the shaft end and match the volute.
Impeller trim Provide the existing impeller diameter or trim requirement; do not assume nominal family size is the supplied trim.
Repair scope Check the shaft keys, washer and retaining hardware separately before completing the repair.

Need help confirming the correct CW impeller? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your pump model, existing part number or photos.
