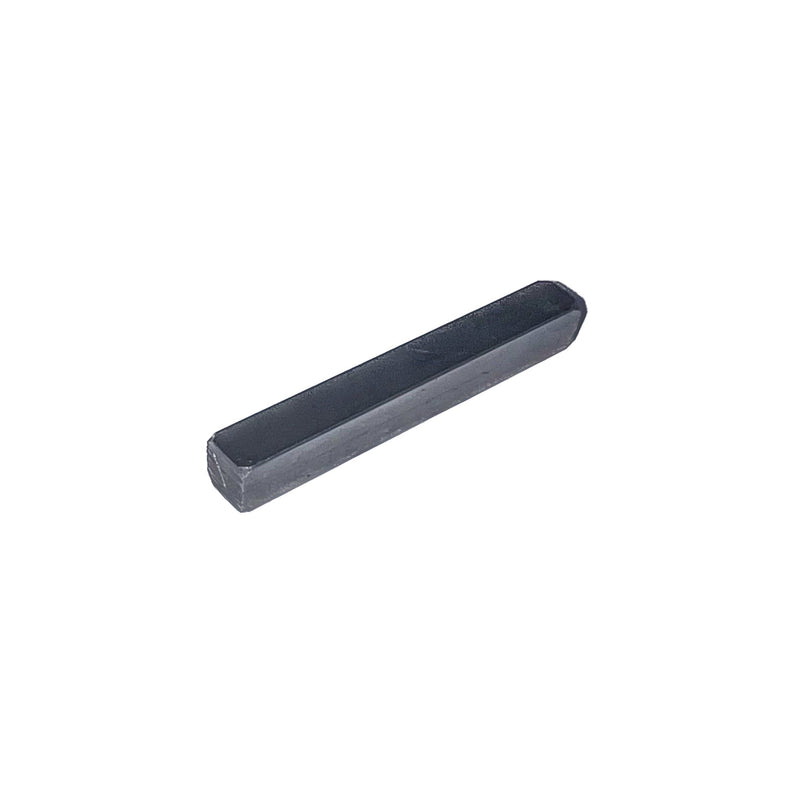

Clé d'arbre 1/4" x 1" de long, UnitedBuilt S24168MS

Clé d'arbre 1/4" x 1" de long, UnitedBuilt S24168MS

UGC 0010211
par UnitedBuilt
Disponibilité:
87 en stock | En stock
$0.00 - $0.00
$0.00
$1.00
$1.00 - $1.00
$1.00

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

The UnitedBuilt S24168MS shaft key is the 1/4-inch x 1-inch replacement key used in the UnitedBuilt B80703MS clockwise hydraulic-drive shaft kit for B4ZRKS pump service. It is the individual key, not a complete shaft kit, hydraulic coupler, or pump.

Use the existing shaft and coupling arrangement to confirm your selection. A key must match both the keyway size and the required length; a different-length key with the same nominal size is not an automatic substitute. The 1/4-inch size refers to the key, not to the pump shaft diameter.

Technical specifications

Specification Detail
Manufacturer UnitedBuilt
Part number S24168MS
Component Shaft key
Nominal key size 1/4 inch
Length 1 inch

Pump service application

Assembly Selection
UnitedBuilt B80703MS Clockwise hydraulic-drive shaft kit
Berkeley B4ZRKS, B69876 Clockwise self-priming pump with hydraulic adapter; shaft-key position 32

Select this key when servicing the matching hydraulic-drive shaft assembly. Match the complete pump model and drive configuration rather than ordering from the B4Z family name alone.

Before ordering

Check What to confirm
Existing key Match the part number, 1/4-inch key size, and 1-inch length.
Drive arrangement Confirm the B80703MS hydraulic-drive shaft-kit configuration.
Repair scope Order any needed shaft, coupling, or other service parts separately.

Need help confirming the correct shaft key? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your pump model, shaft-kit number, or photos of the existing key and coupling.
