Bouchon de jauge visuelle, fluide hydraulique, laiton 1/2 NPTF, Buna-N, LDI LSP151-04-01 (1210K33)

UGC 0010061
par LDI Industries
Disponibilité:
12 en stock | En stock
$0.00 - $0.00
$0.00
$16.94
$16.94 - $16.94
$16.94

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

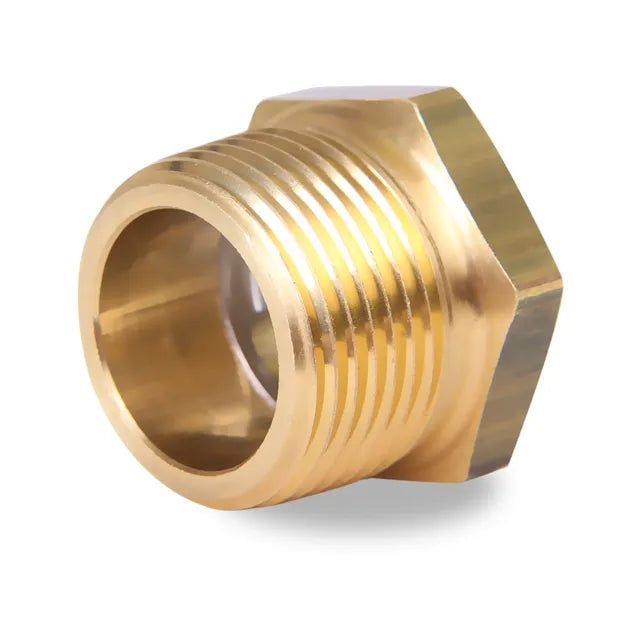

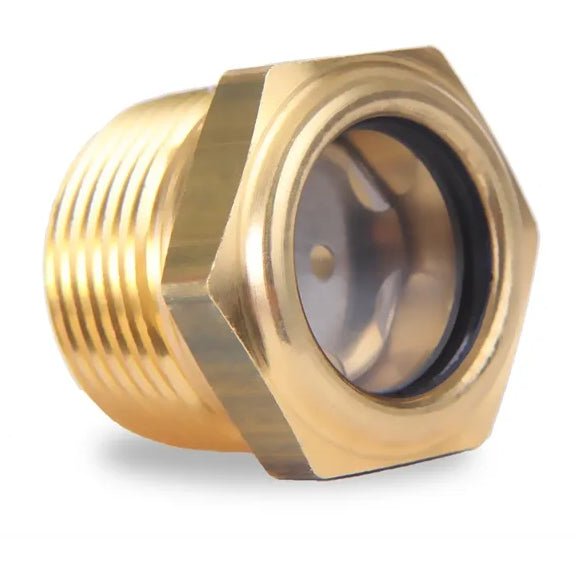

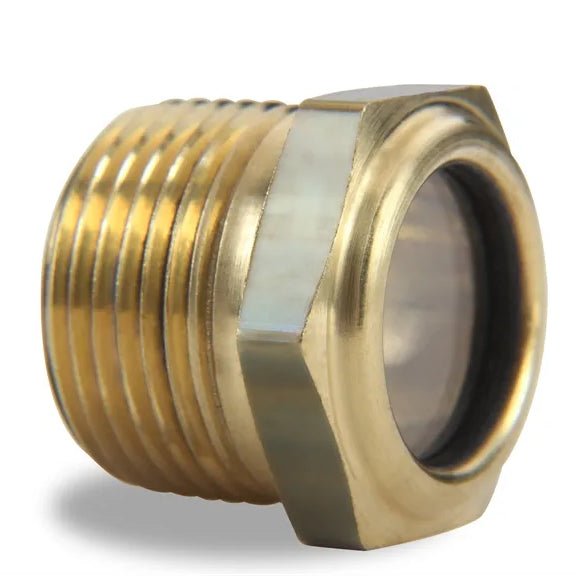

The LDI Industries LSP151-04-01 sight plug provides a viewing window at a compatible low-pressure reservoir port. It combines a brass body, clear soda-lime glass sight and Buna-N seals with a 1/2-14 male PTF dryseal taper pipe connection.

This is the reflector configuration; a float ball is not included. Select it by the complete part number, port thread and operating conditions. It is a fluid-viewing component, not a spray head, nozzle or high-pressure fused sight plug.

Check fluid through the reservoir port

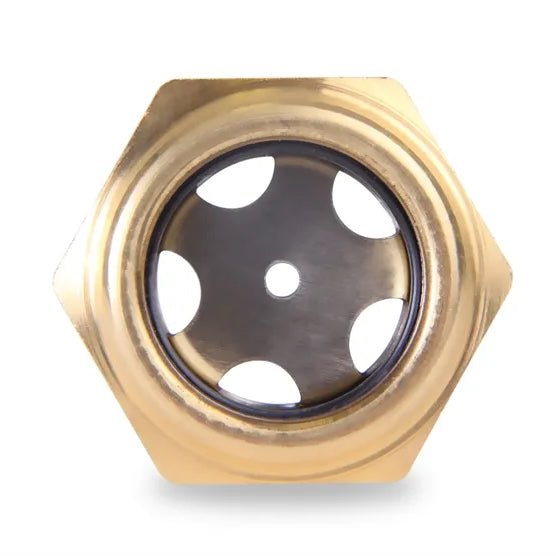

The clear window allows visual checks without removing the plug. The stainless steel reflector sits behind the sight glass; choose this configuration when a reflector is required rather than the open-view or reflector-and-ball versions.

Feature Benefit
Clear glass window View the fluid at the installed sight port.
Built-in reflector Provides a reflective background behind the viewing window.
Male PTF connection Installs in a matching reservoir port; check the actual port thread before ordering.

Technical specifications

Specification Detail
Manufacturer LDI Industries
Series / part number LSP151 / LSP151-04-01
Configuration Sight plug with reflector; no float ball
Connection 1/2-14 male PTF dryseal taper pipe thread
Body Brass
Sight / seals Soda-lime glass / Buna-N
Reflector Stainless steel
Sight diameter (B) 0.56 inch
Hex width (C) 0.88 inch
Maximum overall length (D) 1.01 inches
Maximum working pressure 100 psi at 69°F
Maximum operating temperature 180°F (82°C)

Before ordering

The pressure value is specified at 69°F; do not assume it applies at the maximum temperature. Confirm the allowable pressure at your actual fluid temperature and the compatibility of the fluid with brass, glass and Buna-N before installation.

Check What to confirm
Port and clearance Match the 1/2-14 male PTF connection and allow space for the hex and viewing window.
Included configuration LSP151-04-01 includes a reflector, not a float ball. Do not substitute the LSP151-05-01 size.
Operating conditions Use within the applicable pressure and temperature limits. Steam service is not recommended.
Installation and condition Do not install with an impact wrench. Scratches in the glass reduce its pressure capability; do not use a damaged sight plug.

Need help selecting the correct sight plug? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your existing part number, reservoir port size and operating conditions.
