Water Cannon (Monitor), Vulcan 8500-02, Elk-O-Lite Aluminum, Tiller Bar Control, 3" 150 ANSI Flange, Elkhart 08500021 - UnitedBuilt Equipment

Canon de surveillance, Elkhart Vulcan, 8500-2, bride de 3" (SPRAYMONE8500-2)

UGC 0005809
par Elkhart Brass
Disponibilité:
22 en stock | En stock
Économisez 19% Économisez 19%
$2,206.00
$2,206.00 - $2,206.00
$2,206.00
$1,787.00
$1,787.00 - $1,787.00
$1,787.00

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

The Elkhart Brass Vulcan 8500-02 water cannon monitor (P/N 08500021) is a lightweight, high-flow manual monitor built for water trucks, dust-control equipment, deck-gun installations, and other mobile water applications. Its patented 3-3/8" elliptical vaned waterway minimizes friction loss while the compact aluminum body fits installations with limited clearance.

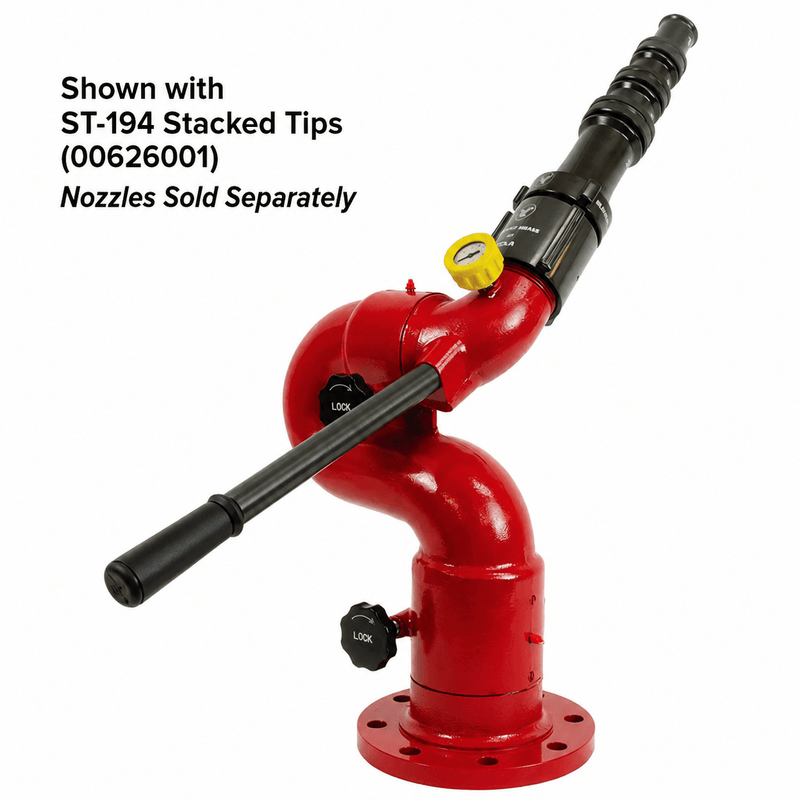

Note: Nozzle sold separately. Product images may show optional ST-194 stacked tips.

Key Features

  • Rated flow up to 1,250 GPM (4,750 LPM)
  • Maximum operating pressure: 200 PSI (14 bar)
  • Manual tiller-bar control for direct monitor positioning
  • Continuous 360° horizontal rotation
  • 135° vertical travel from -45° to +90°
  • Lightweight aluminum construction with red urethane finish
  • Integrated pressure gauge
  • Compact footprint for water trucks and other space-constrained installations

Specifications

Manufacturer Elkhart Brass
Series / Model Vulcan 8500-02
Part Number 08500021
Control Manual tiller bar
Maximum Flow 1,250 GPM (4,750 LPM)
Maximum Pressure 200 PSI (14 bar)
Inlet 3" 150# ANSI flange
Outlet 2.5" male NST (NHT)
Horizontal Travel Continuous 360°
Vertical Travel -45° to +90° (135° total)
Construction Lightweight aluminum
Finish Red urethane

Applications

  • Water truck cannon and monitor systems
  • Construction and mining dust suppression
  • Road and jobsite watering
  • Deck-gun and mobile water-delivery equipment
