Module Nitro HD, Elkhart 81824001

Name: Module Nitro HD, Elkhart 81824001
Brand: Elkhart Brass
SKU: 0010144
Price: 701.0 USD
Availability: InStock

UGC 0010144

par Elkhart Brass

Disponibilité:

0 in stock. En stock

Économisez 19%

$866.00

$866.00 - $866.00

$866.00

$701.00

$701.00 - $701.00

$701.00

Images du produit

Les images sont uniquement à titre de représentation et peuvent différer du produit réel.

La description

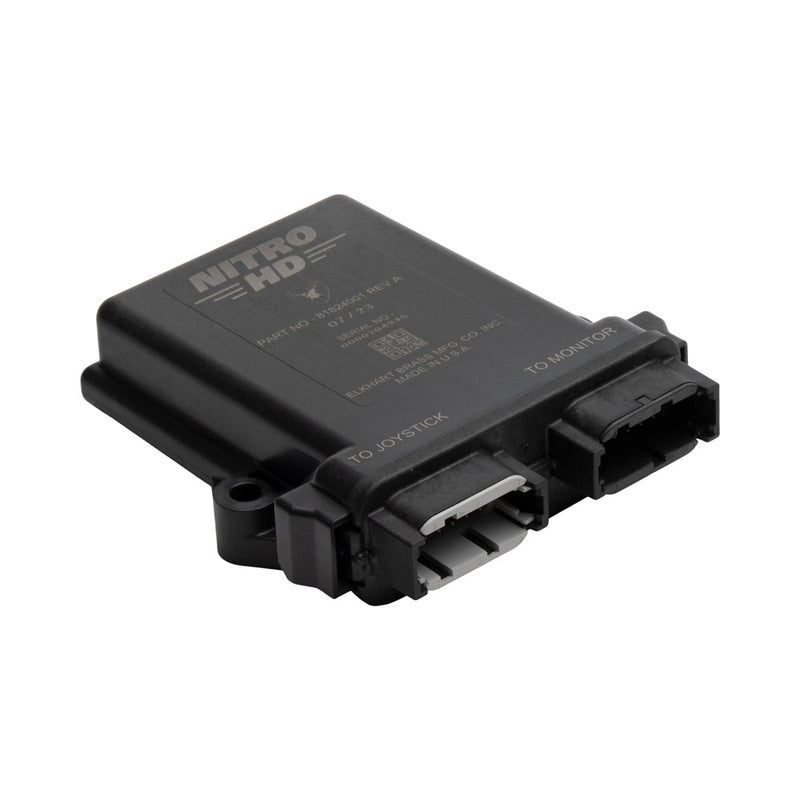

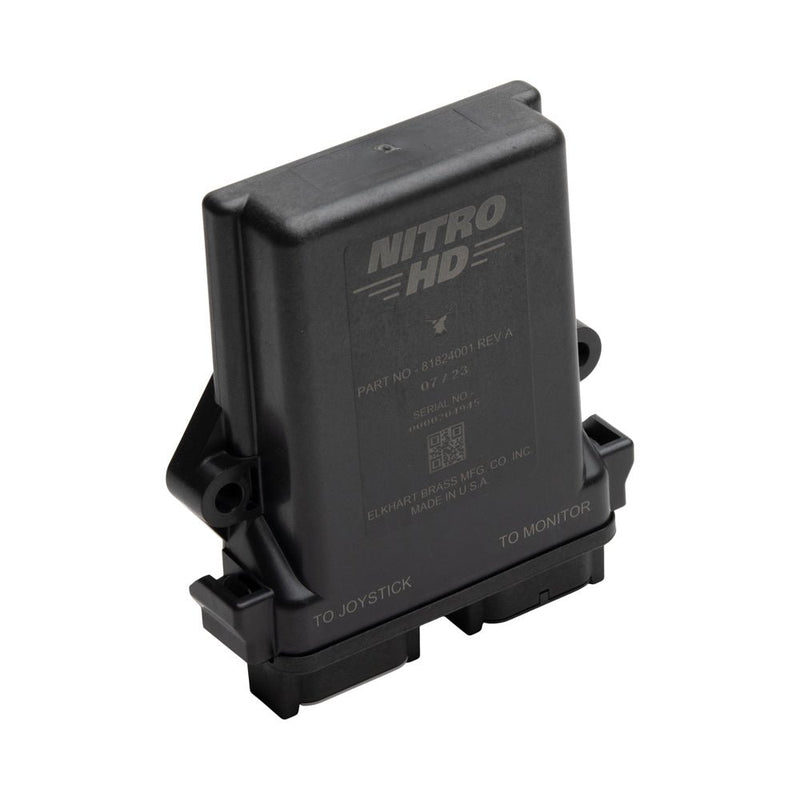

The Elkhart 81824001 Nitro HD control module connects the 8100HD monitor and 41067000 joystick within the Nitro HD control system. Select this replacement by its complete part number and the installed system configuration.

Key Features

System role	Communication between the Nitro HD joystick and monitor
Power connection	Uses the power and ground leads in harness 37523000
Mounting	Flat-surface enclosure mounting
Service application	Replacement control module for the matching Nitro HD system

Product Specifications

Manufacturer	Elkhart Brass
Part number	81824001
Product type	Control module
System supply	12 or 24 VDC; confirm installed-system wiring before connection
Housing	Nylon 6/6
Enclosure	NEMA 4; protect from direct high-pressure spray and impact

System Connections

Monitor	Nitro HD 8100HD
Joystick	41067000
Monitor harness	37522000
Joystick and power harness	37523000
Optional joystick extension	37527000; verify required length and arrangement

Before Ordering and Installation

Replacement check	Match part 81824001 and confirm system revision
Power isolation	Disconnect system power before inspecting or connecting wiring
Mounting position	Choose a protected flat surface and check clearance
Electrical protection	Use the applicable Elkhart wiring instructions and specified circuit protection
Commissioning	Check wiring, mounting and all monitor/nozzle functions before use
