Peterson 820C-7 Oval LED Backup Light, White, AMP, 12V

UGC 0012212
par Peterson
Disponibilité:
43 en stock | En stock
$0.00 - $0.00
$0.00
$15.00
$15.00 - $15.00
$15.00

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

Light only — mounting grommet and wiring plug are sold separately.

The Peterson 820C-7 Lumen X oval LED backup light provides white reverse lighting in a seven-diode, grommet-mount design. Its integral AMP receptacle suits a matching AMP harness connection rather than a PL3 lamp socket.

Choose 820C-7 when replacing the light while retaining compatible mounting and wiring components. For a new installation, select the grommet and plug separately; the 820KC-7 kit is a different part number.

Reverse lighting that suits your mounting position

Feature Benefit
Seven-diode LED lamp Provides the white backup-light function in an oval housing.

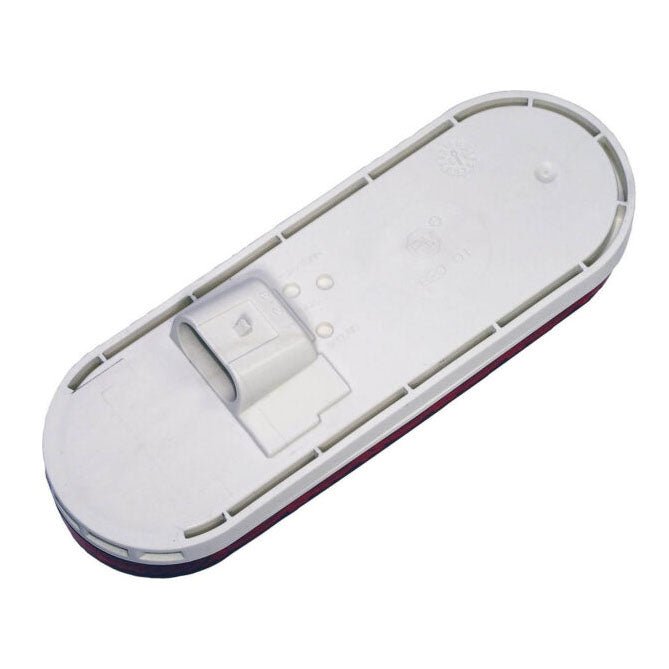

Angled AMP receptacle Integral 30-degree, silicone-sealed connection point accepts the matching AMP plug.
Orientation flexibility Supports horizontal, vertical or other 360-degree orientations while meeting DOT requirements when properly mounted.

Technical specifications

Specification Detail
Manufacturer part number 820C-7
Light function White LED backup light
Light source Seven-diode Lumen X design
Electrical application 12-volt vehicle lighting

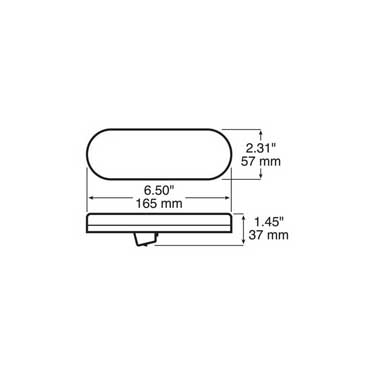

Mounting and termination Oval grommet mount; AMP receptacle
Configuration Light only; separate from 820KC-7 installation kit

Complete the mounting and connection

Component Selection
Grommet Peterson 421-18, purchased separately
Molded AMP plug Peterson 817-48, purchased separately
Vehicle circuit Compatible reverse-light circuit and matching AMP connector

Before ordering

A single light meets DOT backup-light requirements when properly mounted. Correct positioning and an unobstructed light output remain important; replacing the lamp does not by itself verify the complete vehicle installation.

Check What to confirm
Exact model Select the seven-diode 820C-7; do not substitute specifications from the multi-volt 820C-10.
Mounting Compare the oval opening, existing grommet and clearance behind the lamp.
Connector Match the AMP receptacle; a PL3 connector does not connect directly.
Parts needed Reuse only suitable mounting and wiring components, or order the separate 421-18 grommet and 817-48 plug.

Need help selecting a replacement backup light? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your existing part number, electrical supply and mounting photos.
