Work Light, 3.25" x 4.75" Oval LED Flood Light, Swiveling Head Horizontal or Vertical, IP67, 12V/24V, 1900 Lumens, Rugged Die - Cast Aluminum Body, Peterson 919 - MV - UnitedBuilt Equipment

Peterson 919-MV Oval LED Wide Spot Work Light, 1900 Lumens, 12V/24V

Name: Peterson 919-MV Oval LED Wide Spot Work Light, 1900 Lumens, 12V/24V
Brand: Peterson
SKU: 0012287
Price: 51.75 USD
Availability: InStock

UGC 0012287

par Peterson

Disponibilité:

47 en stock | En stock

$0.00 - $0.00

$0.00

$51.75

$51.75 - $51.75

$51.75

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

La description

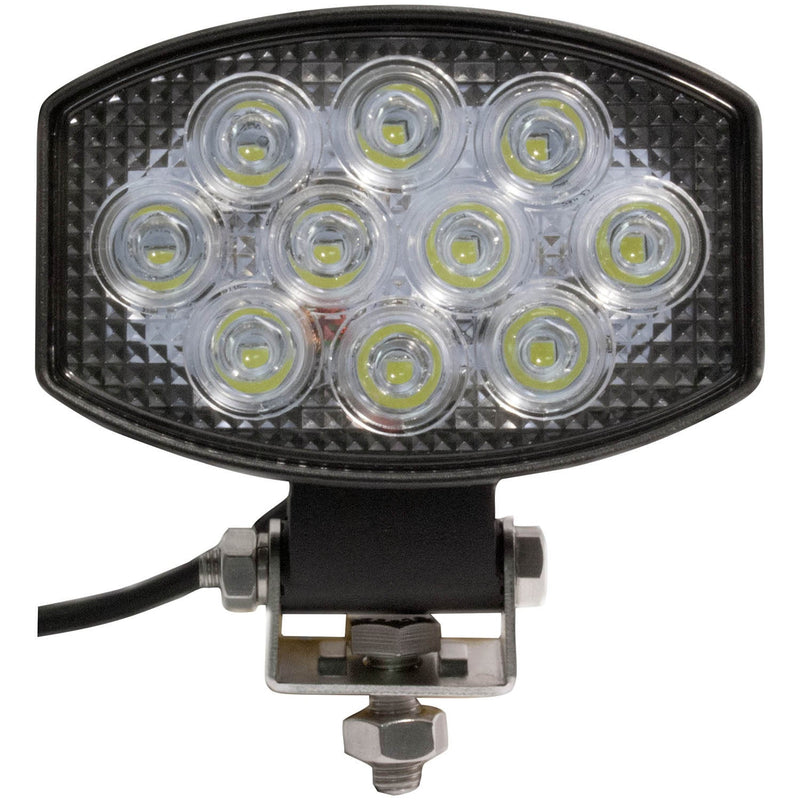

The Peterson 919-MV oval LED work light provides 1900 lumens in a wide spot beam pattern. Its swiveling head can be mounted horizontally or vertically, making it a practical selection when the available mounting space and the area to be illuminated require different aiming arrangements.

Multi-volt circuitry supports 12-volt and 24-volt vehicles. The light is supplied with a two-conductor black PVC-jacketed harness with stripped leads and stainless steel mounting hardware; complete the vehicle-side wiring to suit the installation.

Position light where the job needs it

Feature	Benefit
Swiveling head	Allows horizontal or vertical mounting and adjustment toward the work area.
Die-cast aluminum body	Heat-dissipating fins help move heat away from the light.
Multi-volt circuitry	Works with 12V or 24V vehicle electrical systems.
IP67/ IP69K protection	Sealed construction suits demanding exterior work-light installations.

Technical specifications

Specification	Detail
Manufacturer part number	919-MV
Application and shape	Oval LED work light
Light output	1900 lumens
Beam pattern	Wide spot
Electrical supply	12V / 24V
Current draw	1.64 A at 12 VDC; 0.83 A at 24 VDC
Housing	Die-cast aluminum with heat-dissipating fins
Ingress protection	IP67 / IP69K
Compliance	RoHS compliant; certified to ECE Regulation 10

Plan the installation

Component	Supplied configuration
Work-light assembly	Swiveling oval head for horizontal or vertical mounting
Electrical leads	Two-conductor black PVC-jacketed harness with stripped leads
Mounting hardware	Stainless steel hardware included
Vehicle-side wiring	Select suitable circuit protection, wiring and connections for the vehicle

Before ordering

Use this lamp for work-area illumination around trucks or equipment. Select the beam for the task: wide spot describes this model’s light distribution, rather than a flood pattern.

Check	What to confirm
Mounting space	Allow room for the head, bracket, aiming movement and wiring clearance.
Electrical system	Confirm 12V or 24V supply and circuit capacity for the stated current draw.
Aiming	Choose a mounting location that illuminates the task without directing the beam at nearby operators.
Wiring	Stripped leads require vehicle-side connections; this is not a plug-in accessory-socket light.

Need help selecting and mounting a work light? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your existing part number, electrical supply and mounting photos.
