Tee, Brass, Female NPT - UnitedBuilt Equipment

UnitedBuilt Choice Brass Tee, 1/8" Female NPT — 3700X2

UGC 0012237
par UnitedBuilt Choice
Disponibilité:
9 en stock | En stock
$0.00 - $0.00
$0.00
$6.00
$6.00 - $6.00
$6.00

Product Images

Images are for representation only and may differ from the actual product.

Size 1/8"

Questions about this product?

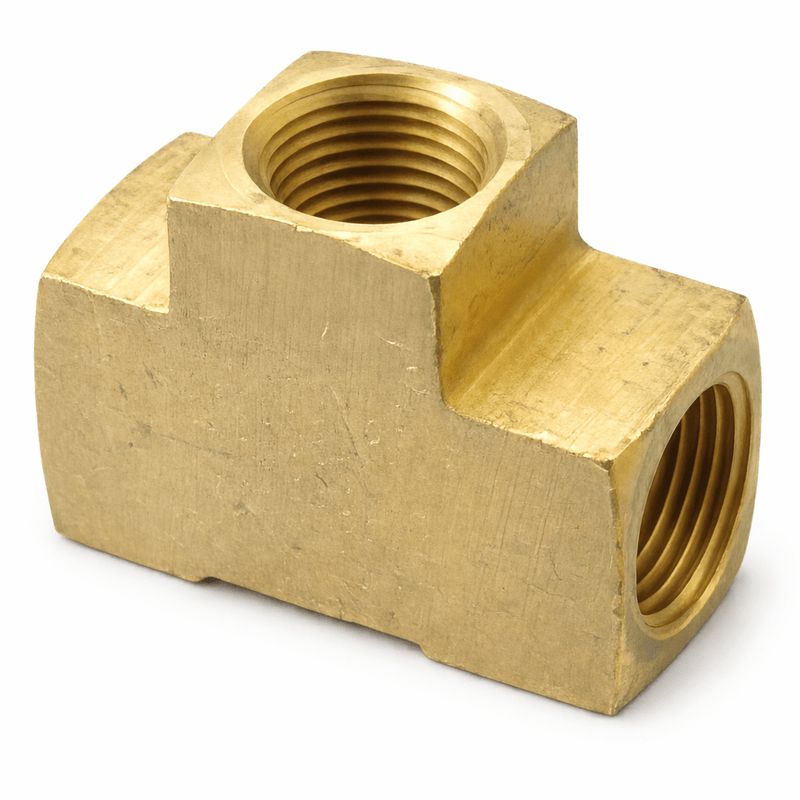

The UnitedBuilt Choice 3700X2 brass tee provides three 1/8-inch female NPT ports for a three-way threaded connection. Its tee layout adds a right-angle branch to a compatible air-line run.

Use this fitting when the system calls for a brass female-threaded tee rather than a push-in tube fitting. Each port accepts a compatible male threaded connection; the 1/8-inch designation is the nominal pipe-thread size, not a tube outside diameter. Select adapters and connected components separately to suit your circuit.

A branch connection with matching pipe-thread ports

The three female ports let you connect the run and branch using the male-threaded components required by your layout. Match the exact thread standard and service conditions before replacing an existing tee; a similar appearance or nominal size alone does not establish compatibility.

Feature Benefit
Three female ports Creates a three-way connection between compatible male-threaded components.
Tee configuration Adds a right-angle branch to a threaded line.
1/8-inch NPT connections Keeps all three pipe-thread ports the same nominal size.

Technical specifications

Specification Details
Brand UnitedBuilt Choice
Reference number 3700X2
Fitting type Tee
Port configuration Three female ports
Thread size and standard 1/8-inch NPT at all ports
Material Brass

Before ordering

Check Selection guidance
Connections Confirm three compatible 1/8-inch male NPT connections; do not substitute BSP or tube-OD sizing.
Service conditions Confirm the fitting and connected components are suitable for the system medium, operating pressure, and temperature.
Installation Select a thread-sealing method compatible with the medium and equipment instructions; isolate and depressurize the system before service.
Restricted applications Do not assume potable-water, fuel-gas, or air-brake approval from brass material or thread size.
Layout Check branch direction, installation clearance, and any adapters needed for your circuit.

Need help selecting the correct fitting? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your thread size, branch layout, and application.
