Franklin 305462035 CCW Grooved Volute Case for XS439

Name: Franklin 305462035 CCW Grooved Volute Case for XS439
Brand: Franklin
SKU: 0007280
Price: 986.85 USD
Availability: InStock

UGC 0007280

par Franklin

Disponibilité:

2 en stock | En stock

Économisez 25%

$1,316.00

$1,316.00 - $1,316.00

$1,316.00

$986.85

$986.85 - $986.85

$986.85

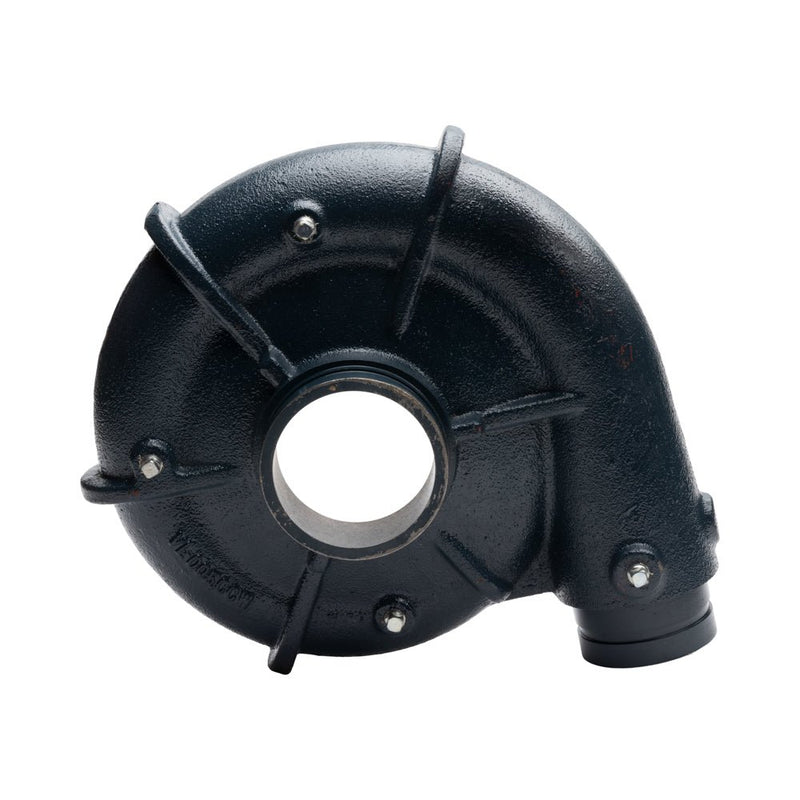

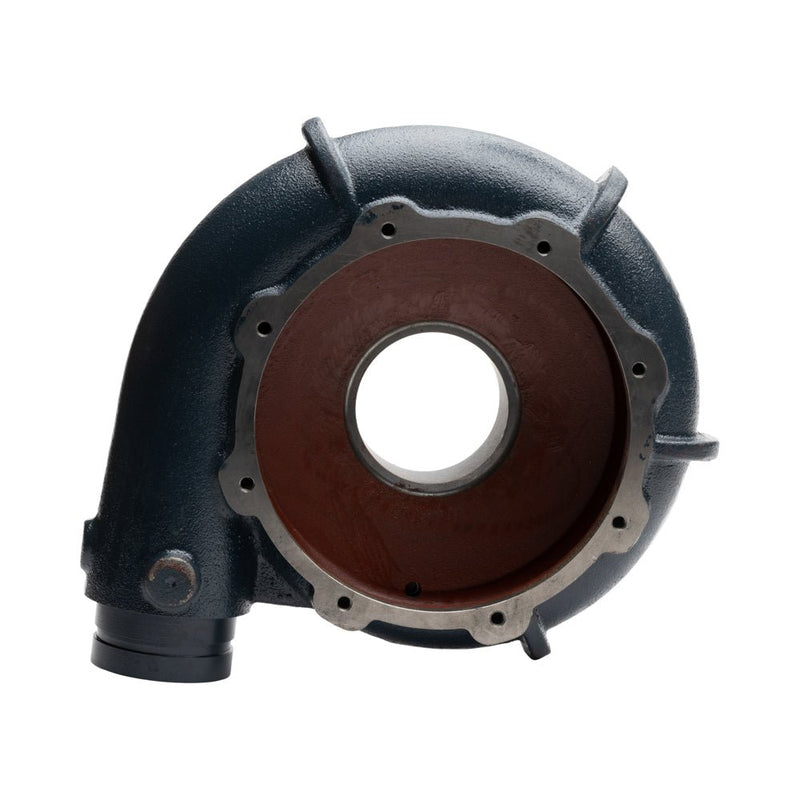

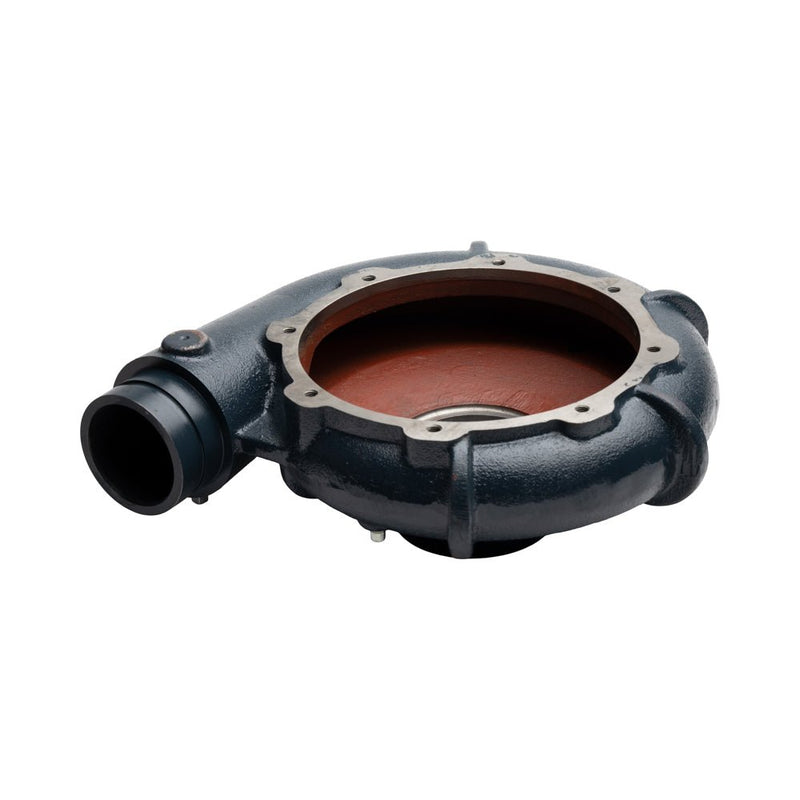

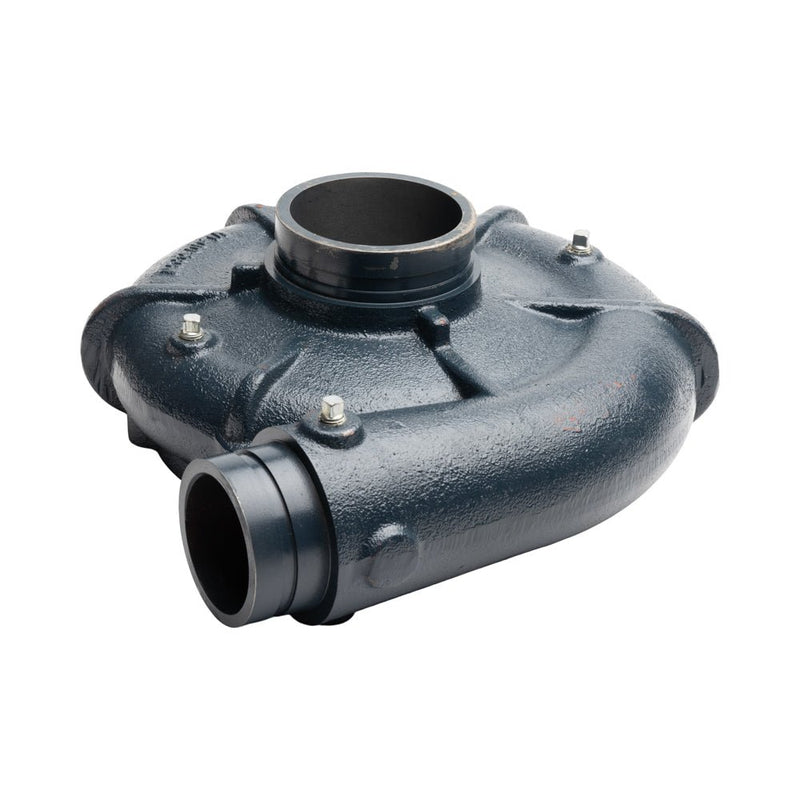

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

La description

Replacement CCW grooved volute case — not a complete pump.

The Franklin XS439 CCW grooved volute case, part 305462035, is a service component for XS3x4-9 water truck pumps. It has counterclockwise (CCW) rotation and grooved connections, with a 4-inch suction and 3-inch discharge.

Use this case when servicing the matching grooved pump configuration. The volute and impeller must match the pump rotation; a clockwise case is not a substitute for the counterclockwise version. Confirm rotation from the shaft end and compare the connection style before ordering.

Match the grooved case and rotation

Feature	Benefit
Grooved suction and discharge	Matches a grooved piping arrangement rather than an NPT-threaded connection.
Rotation-specific case	Choose the case that matches the installed impeller and pump rotation.

Technical specifications

Specification	Detail
Manufacturer	Franklin Electric
Manufacturer part number	305462035
Pump family	XS439 / XS3x4-9
Component	CCW grooved volute case
Rotation	Counterclockwise (CCW) viewed from shaft end
Suction / discharge	4-inch suction / 3-inch discharge
Connection style	Grooved
Material	Cast iron, ASTM-48 Class 30

Before ordering

Check	What to confirm
Pump identity	Match the pump model and existing part number; do not select by appearance alone.
Rotation	Confirm counterclockwise (CCW) when viewed from the shaft end.
Connections	Verify grooved connections, 4-inch suction and 3-inch discharge.
Related service items	Check the case gasket and fastening hardware needed for the repair; this is not a complete rebuild kit.

Need help confirming the correct CCW grooved volute case? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your pump model, existing part number or photos.
