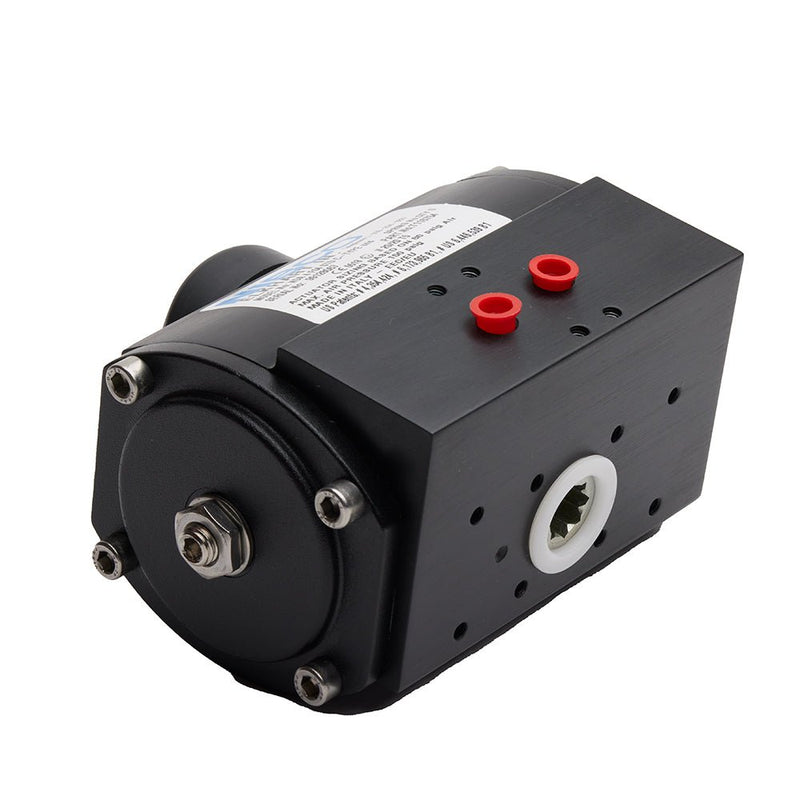

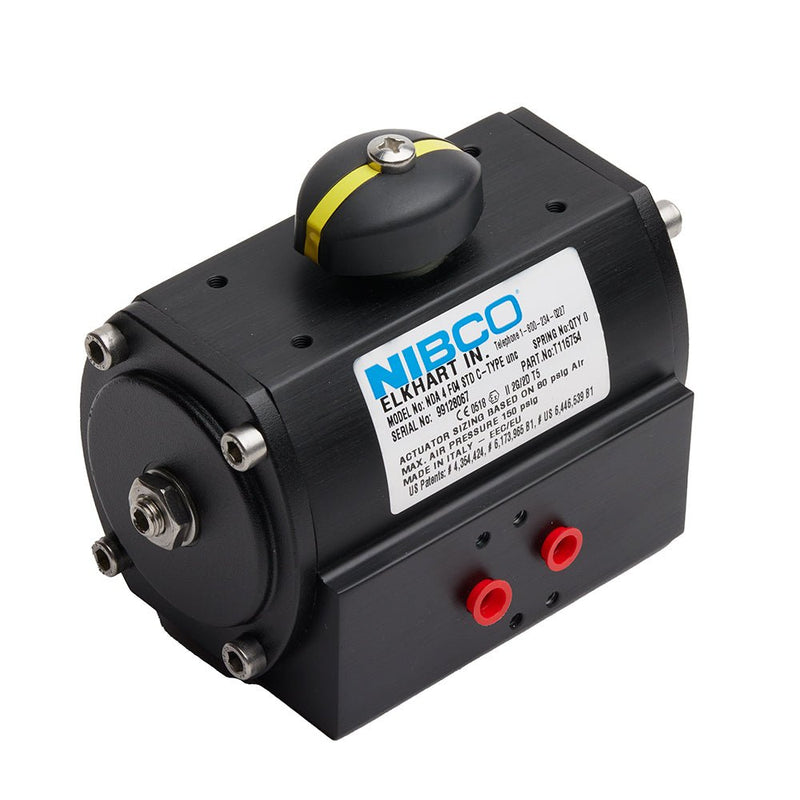

The NIBCO NDA4F04 is a double-acting rack-and-pinion pneumatic actuator for compatible quarter-turn valve applications. It delivers 337 in-lb of output torque at 80 PSI and uses an ISO 5211 F04 mounting interface for compatible ball, butterfly, plug, and damper assemblies.
An anodized extruded-aluminum body, epoxy-coated end caps, solid steel shaft, Buna O-ring seals, NAMUR accessory mounting, and star-shaped drive support durable operation. Port A drives counterclockwise opening, while Port B drives clockwise closing.
This listing is intended for compatible NIBCO 2 through 4 in. valve configurations. Confirm the valve torque requirement and mounting interface before selection.
Key Features
| Feature |
Details |
| Double-Acting Operation |
Compressed air powers both opening and closing strokes |
| 337 in-lb at 80 PSI |
Provides rated quarter-turn output torque for compatible valves |
| ISO 5211 F04 Mounting |
Standardized valve-mounting interface for compatible assemblies |
| NAMUR Accessory Mounting |
Supports compatible pneumatic accessories and controls |
| Durable Construction |
Anodized aluminum body, epoxy-coated end caps, steel shaft, and Buna seals |
| Fast Actuation |
Operation time is less than one second per stroke at 80 PSI |
Specifications
| Attribute |
Details |
| Brand |
NIBCO |
| Manufacturer Model |
NDA4F04 |
| Catalog Reference |
VALACTNDA4F04 |
| UnitedBuilt SKU |
0006341 |
| Series |
NDA |
| Actuator Type |
Double-Acting Rack-and-Pinion Pneumatic |
| Mounting Interface |
ISO 5211 F04 |
| Output Torque at 40 PSI |
169 in-lb |
| Output Torque at 60 PSI |
253 in-lb |
| Output Torque at 80 PSI |
337 in-lb |
| Output Torque at 100 PSI |
422 in-lb |
| Operation Time at 80 PSI |
Less Than 1 Second per Stroke |
| Air Consumption |
0.18 L Open / 0.24 L Close |
| Air Port |
1/8 in. NPT |
| Standard Seal Material |
Buna / Nitrile |
| Standard Temperature Range |
-40°F to 212°F |
| Body |
Anodized Extruded Aluminum |
| End Caps |
Epoxy-Coated |
| Shaft |
Solid Steel |
| Actuator Weight |
4 lb |
| Rotation |
Port A: CCW Open / Port B: CW Close |
Applications
| Application |
Use Case |
| Compatible NIBCO Quarter-Turn Valves |
Pneumatic actuation for ball, butterfly, plug, and damper assemblies |
| Butterfly Valve Actuation |
Provides double-acting control where torque and F04 mounting requirements match |
| Water Truck Air Systems |
Controls compatible pneumatic valves used in water-truck plumbing |
| Industrial Fluid Control |
Suitable for compatible compressed-air valve automation systems |
