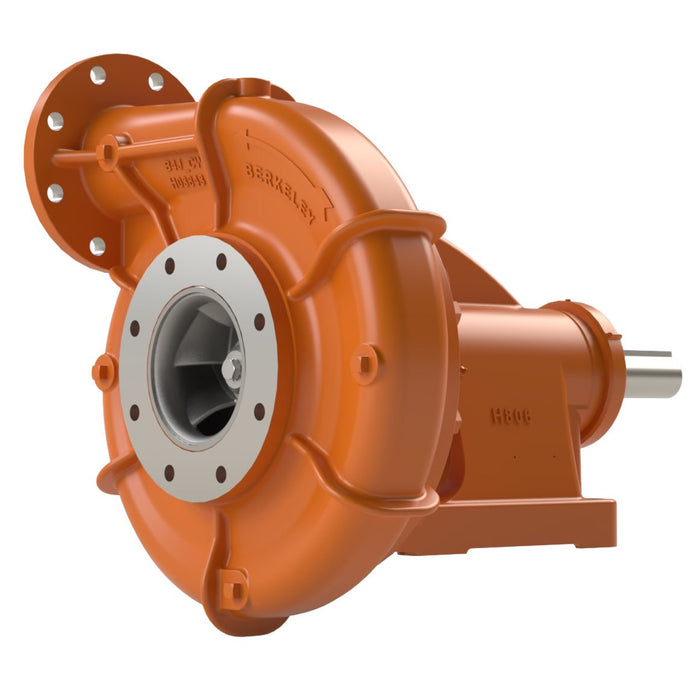

Water Truck Pump, Model B4JRMBH, 5" Suction x 4" Discharge Flanged, Clockwise (CW), Keyed Shaft, 13.5" Impeller, Rope Packing Seal, Berkeley B62321 - UnitedBuilt Equipment

Water Truck Pump, Model B4JRMBH, 5" Suction x 4" Discharge Flanged, Clockwise (CW), Keyed Shaft, 13.5" Impeller, Rope Packing Seal, Berkeley B62321

UGC 0012080
par Berkeley
Disponibilité:
1 en stock | En stock
Économisez 51% Économisez 51%
$14,908.00
$14,908.00 - $14,908.00
$14,908.00
$7,304.00
$7,304.00 - $7,304.00
$7,304.00

Images du produit

Les images sont uniquement à titre de représentation et peuvent différer du produit réel.

The Berkeley B62321 B4JRMBH water truck pump is a heavy-duty centrifugal pump configured for high-volume water delivery, dust control trucks, construction water trucks, mining support trucks, and keyed-shaft drive applications. This pump features a 5" suction x 4" discharge flanged connection, clockwise rotation, 13.5" impeller, rope packing seal, and keyed shaft configuration.

The B4JRMBH is built for larger water truck systems where high flow capacity and a shaft-driven pump setup are required. It is commonly used to supply spray heads, water cannons, hose reels, discharge plumbing, tank recirculation, and high-volume dust suppression systems.

This pump is a strong replacement option for compatible Berkeley B62321 / B4JRMBH configurations where the suction and discharge size, flange style, rotation, impeller diameter, seal type, and shaft configuration match the existing water truck pump system.

Key Features

Feature Details
Berkeley B4JRMBH Pump Heavy-duty centrifugal pump for high-volume water truck applications
Berkeley Part Number B62321 Genuine Berkeley pump configuration
5" x 4" Flanged Connections 5" suction and 4" discharge flanged ports
13.5" Impeller Large impeller for high-volume water delivery
Clockwise Rotation CW rotation configuration for matching drive systems
Rope Packing Seal B4JRMBH configuration uses rope packing seal
Keyed Shaft Drive Shaft-driven configuration for compatible driveline or coupling setups
Water Truck Pump Use Suitable for compatible dust control, construction, and mining water truck systems
High-Volume Spray Support Supports spray heads, water cannons, hose reels, and discharge plumbing
Heavy-Duty Replacement Pump Replacement option for matching Berkeley B62321 pump installations

Specifications

Attribute Details
Brand Berkeley
Part Number B62321
Pump Model B4JRMBH
Product Type Water Truck Pump
Pump Style Centrifugal pump
Suction Size 5"
Discharge Size 4"
Connection Type Flanged suction and discharge
Rotation Clockwise / CW
Impeller Size 13.5"
Seal Type Rope packing seal
Drive Type Keyed shaft
Primary Use High-volume water truck spray and water delivery systems
Compatible Applications Dust control trucks, mining water trucks, construction water trucks, and keyed-shaft water truck pump systems
Confirm Before Use Pump model, rotation, flange pattern, impeller size, seal type, and shaft drive configuration

Applications

Application Use Case
Water Truck Spray Systems Supply water to front, rear, and side spray heads
High-Volume Dust Control Support construction sites, haul roads, and mining roads
Mining Water Trucks Provide flow for large-capacity water delivery and dust suppression
Construction Water Trucks Support compaction, grading, site watering, and equipment washdown
Shaft-Driven Water Trucks Use with compatible keyed-shaft drive or coupling systems
Water Cannon Supply Feed compatible high-flow water cannon or monitor assemblies
Hose Reel Operation Support water delivery through compatible hose reel systems
Tank Recirculation Move water through compatible recirculation or plumbing systems
Pump Replacement Replace matching Berkeley B4JRMBH / B62321 pump configurations
