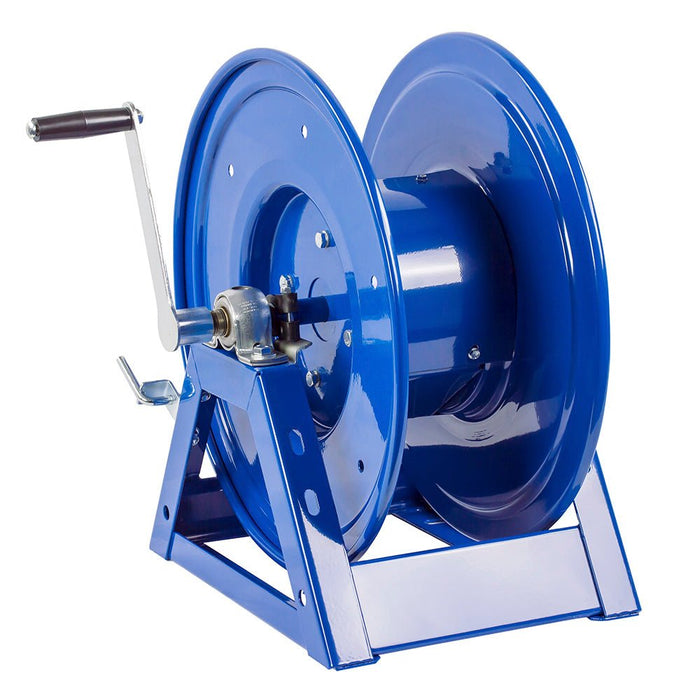

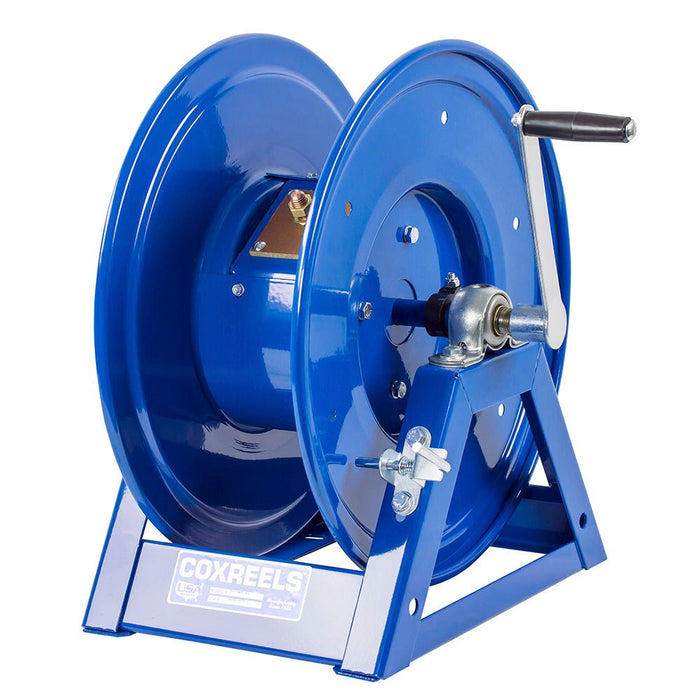

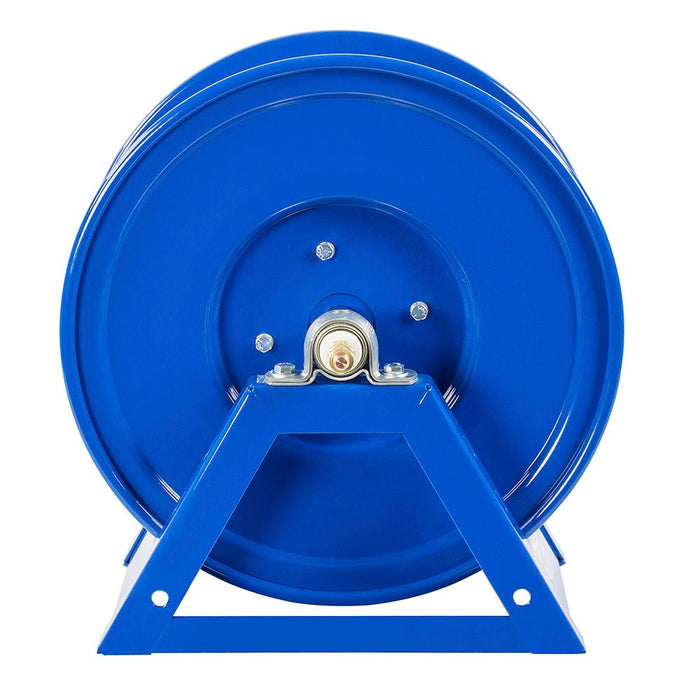

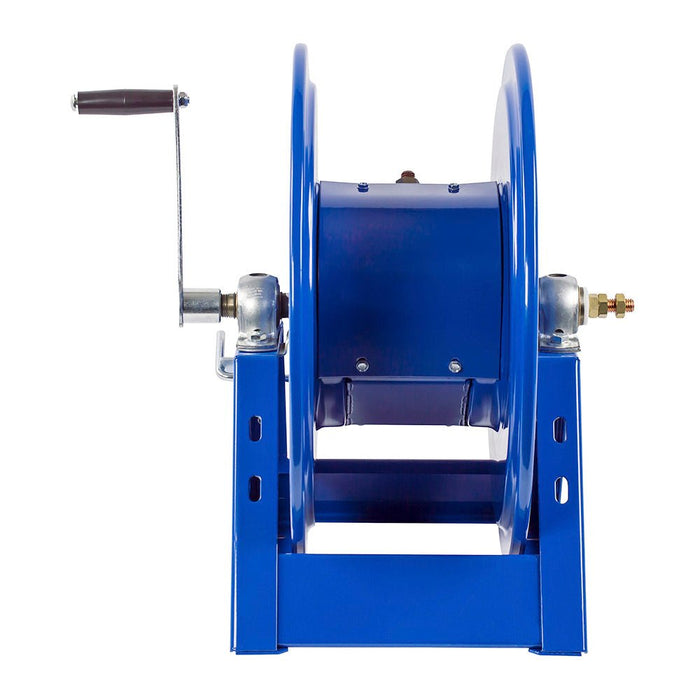

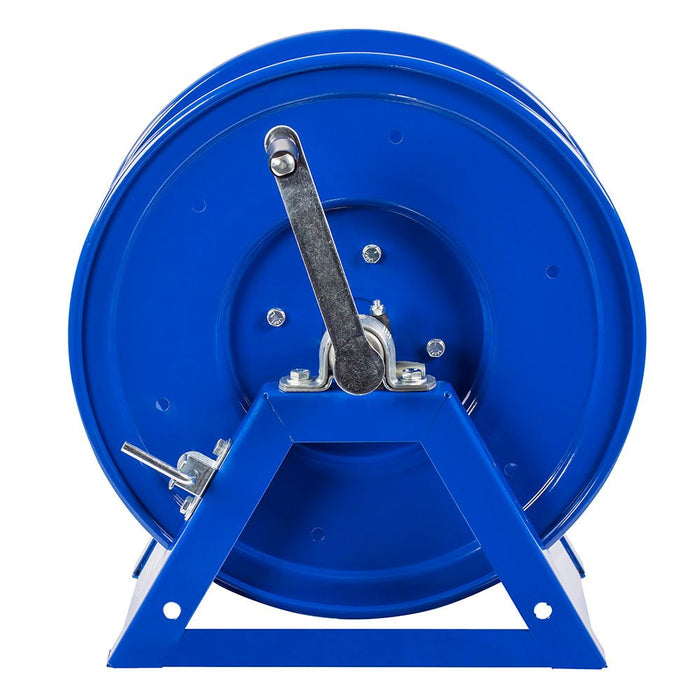

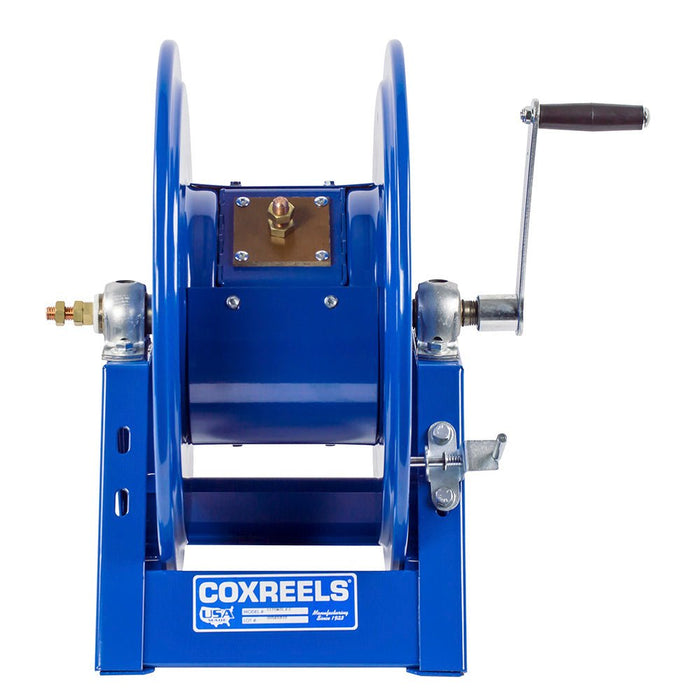

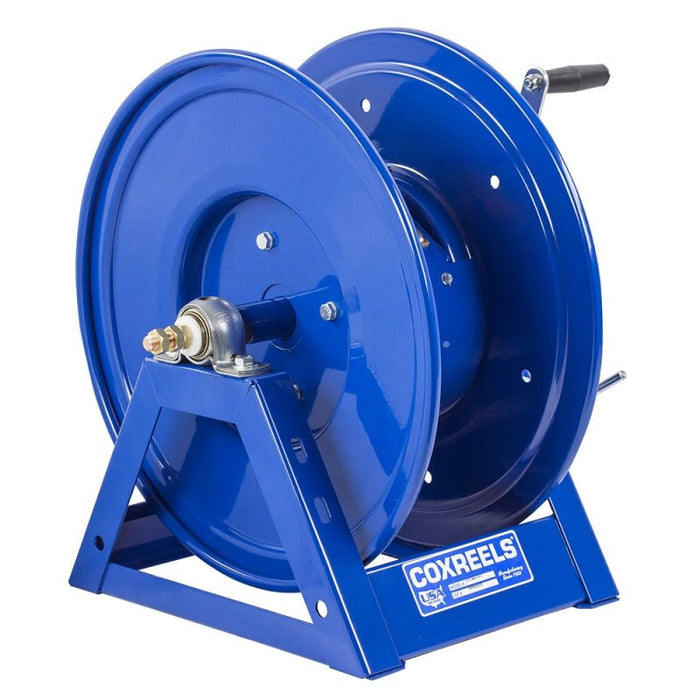

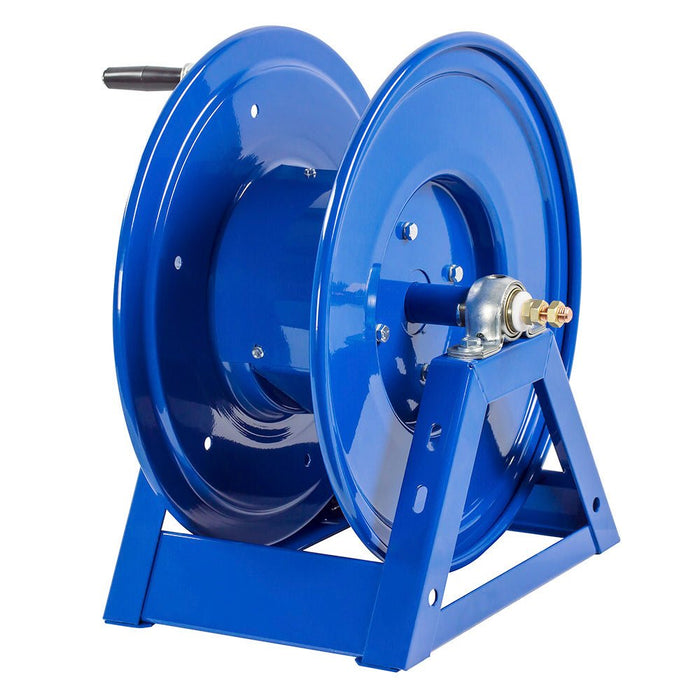

Welding Cable Reel, Hand Crank, Holds up to 300’ #2 Cable, Electrode and Grounding Lead Reels (Cable Not Included), Coxreels 1125WCL-6-C

The Coxreels 1125WCL-6-C Welding Cable Reel is a heavy-duty, professional-grade solution designed for safely storing and managing welding and grounding cables in demanding industrial environments. Built with rugged, all-welded steel construction, this reel is engineered to withstand tough job site conditions while improving organization, safety, and efficiency.

The 1125WCL-6-C model features a 450 AMP rated slip ring assembly, allowing continuous electrical current to pass through the reel—making it ideal for grounding cable applications without the need to disconnect cables. Its compact narrow-width design makes it perfect for service trucks, welding rigs, and tight installation spaces.

Equipped with a smooth hand crank rewind, this model provides controlled cable payout and retrieval, while the adjustable tension brake prevents unwanted free-spooling during operation or transport.

Whether you’re outfitting a welding truck or upgrading your shop setup, the Coxreels 1125WCL-6-C delivers reliable performance, long service life, and professional-grade cable management.

Key Features

• Model: 1125WCL-6-C
• Heavy-Duty Steel Construction – Durable, all-welded “A-frame” design built for industrial use
• 450 AMP Slip Ring Assembly – Enables continuous current flow for grounding applications
• Manual Hand Crank Rewind – Smooth, controlled cable management
• Compact Narrow Design – Ideal for space-limited installations like service trucks
• Self-Aligning Bearings – Permanently lubricated for smooth, long-lasting operation
• Adjustable Tension Brake – Prevents free-wheeling and improves safety
• Locking Pin – Secures reel during transport and storage
• Made in the USA – Built for quality and reliability

Specifications

• Amperage Rating: 450 AMP
• Cable Capacity: Up to ~600 ft (depending on cable diameter)
• Cable Size: #2 to #2/0 AWG
• Rewind Type: Hand crank
• Mounting Options: Floor, wall, or vehicle mount
• Material: Heavy-duty steel
• Finish: Durable powder coat
• Cable Included: No (reel only)
