Hydraulic Pump/Motor, SAEB, 15GPM / 3.45 cu.in, 1 - 1/4" ORB Side Ports / 1" ORB Rear Ports, Shaft 7/8" x 13 Tooth, Bi - Rotational, Muncie PK11502BSBB - UnitedBuilt Equipment

Hydraulic Gear Pump/Motor, SAE B, 15 GPM at 1,000 RPM, 7/8" 13-Tooth Spline, Bi-Rotational, Muncie PK11502BSBB

UGC 0012611
par Muncie
Disponibilité:
22 en stock | En stock
$0.00 - $0.00
$0.00
$740.00
$740.00 - $740.00
$740.00

Images du produit

Les images sont uniquement à titre de représentation et peuvent différer du produit réel.

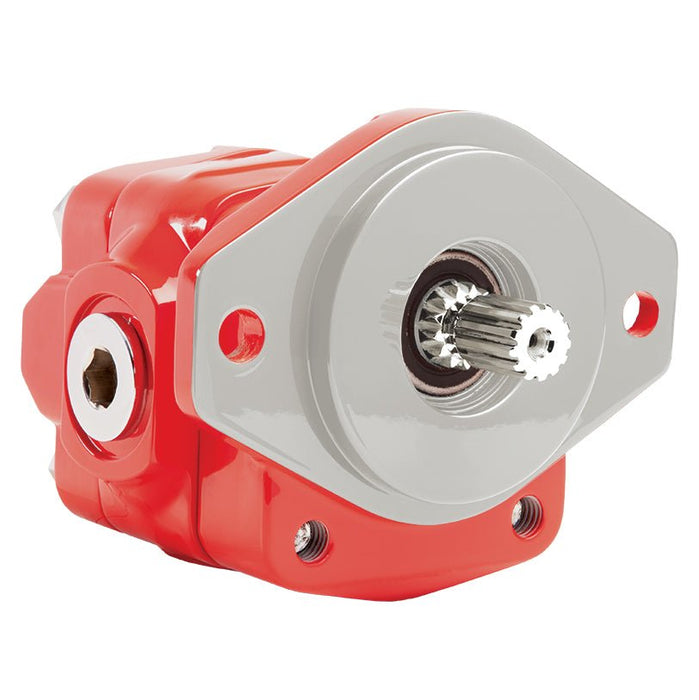

Muncie PK11502BSBB is a bi-rotational hydraulic gear pump/motor with 3.45 cubic inches of displacement per revolution. Its nominal pump flow is 15 GPM at 1,000 RPM. SAE B mounting, a 7/8-inch 13-tooth spline shaft and four-port construction provide connection options for compatible hydraulic systems.

Features

Feature Detail
Dual application Hydraulic pump or motor
Rotation Bi-rotational
Construction Cast iron housing with roller bearings
Port arrangement Side and rear connections

Specifications

Specification Detail
Model PK11502BSBB / PK1-15-02BSBB
Displacement 3.45 cu in/rev
Nominal pump flow 15 GPM at 1,000 RPM
Mounting flange SAE B, 2- and 4-bolt
Shaft 7/8" diameter, 13-tooth spline
Side ports 1-1/4" SAE straight-thread O-ring
Rear ports 1" SAE straight-thread O-ring
Maximum pressure 2,500 PSI
Speed range 600–2,500 RPM

Applications

Application Selection requirement
PTO-driven hydraulic pump Match flange, spline and operating speed
Hydraulic motor Match available flow, pressure and required shaft output
Replacement pump/motor Confirm displacement, mounting and port configuration

Selection and installation

Check Guidance
Flow Select using operating RPM and system requirements
Drive connection Verify SAE B mounting and 7/8" 13-tooth spline engagement
Plumbing Match ORB fittings and follow the required port arrangement
Operating limits Keep speed and pressure within the model’s ratings
