Power Take Off (PTO), Powershift Hydraulic (Hot Shift), Electric 12V Over Hydraulic, 10-Bolt, SAE Type 1 1/4" Round Shaft, Input Gear: 63 - Allison, Assembly Arrangement Left Forward, Eaton Bezares PT3252PCE633SE, 3252 Series

Power Take Off (PTO), Powershift Hydraulic (Hot Shift), Electric 12V Over Hydraulic, 10-Bolt, SAE Type 1 1/4" Round Shaft, Input Gear: 63 - Allison, Assembly Arrangement Left Forward, Eaton Bezares PT3252PCE633SE, 3252 Series

UGC 0011811
par EATON
Disponibilité:
1 en stock | En stock
Économisez 27% Économisez 27%
$3,395.45
$3,395.45 - $3,395.45
$3,395.45
$2,490.00
$2,490.00 - $2,490.00
$2,490.00

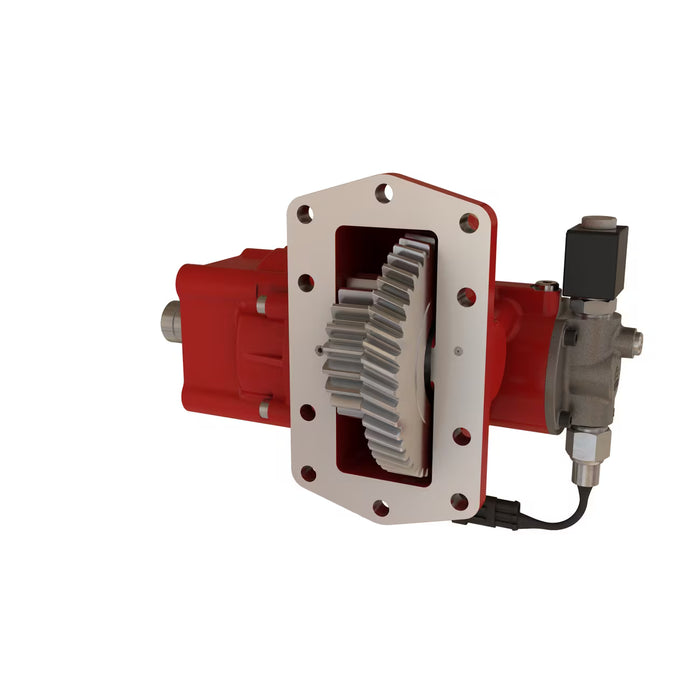

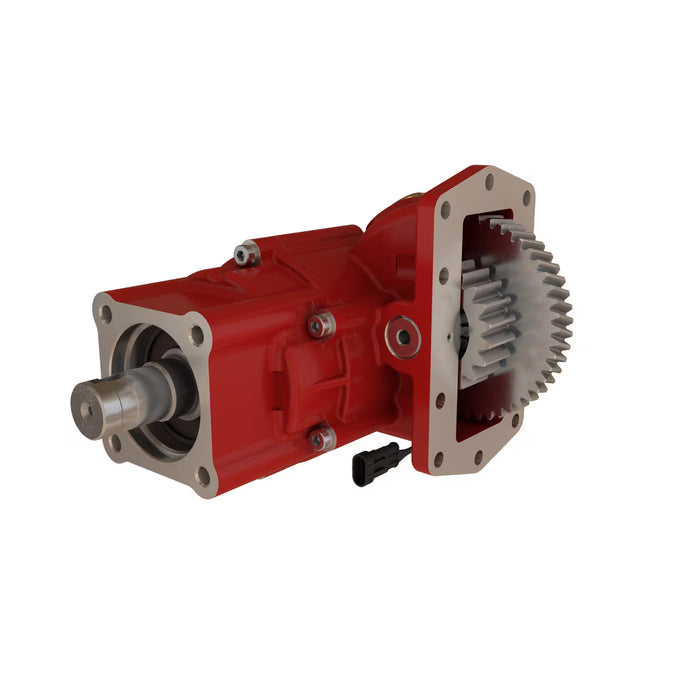

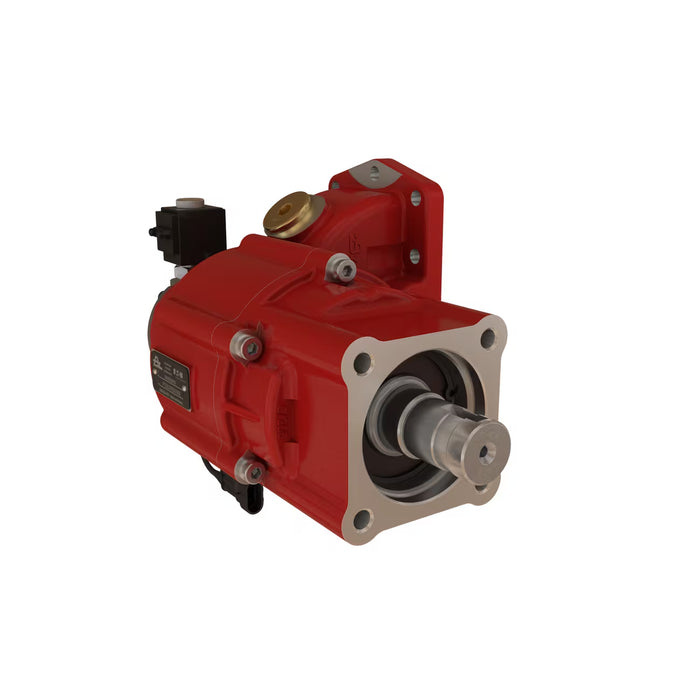

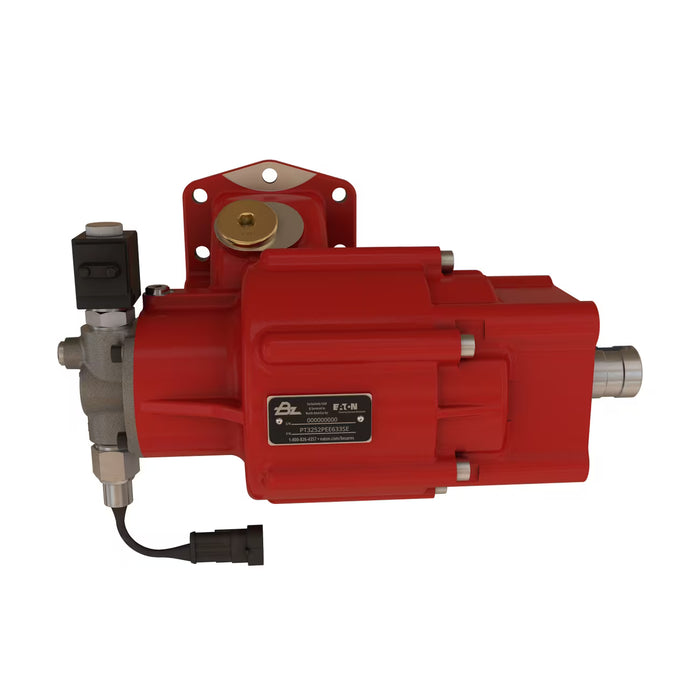

Images du produit

Les images sont uniquement à titre de représentation et peuvent différer du produit réel.

PT3252PCE633SE - Eaton Bezares 3252 Power Take Off , 3252 Series Series PTO , Input Gear: 63 - Allison , Internal Ratio: 0.59 , Shifter Type: E - Electric 12V. Over hydraulic

Please refer to Eaton Bezares PTO Application Catalog for Engine Speed % based on your transmission.

  • Internally lubricated for ease of installation, improved bearing life and cooler operation
  • Clutch pack material is designed to provide smooth engagement and long life
  • Higher torque rating than competitors within the same PTO segment

General specifications

Product Name
Eaton Bezares 3252 Series PTO
Catalog Number
PT3252PCE633SE
UPC
840379309607
Certifications
Not Applicable
Product Type
PTO

Product specifications

Bolt count
10 Bolt
Series
Allison
Versions (available options)
G - Greasable Idler Shaft
Intermittent torque - max
400 Ft-Lb
Intermittent power - max
76 HP
Continuous torque - max
300 Ft-Lb
Continuous power - max
57 HP
Output type
SE - SAE Type 1 1/4" round shaft
Assembly arrangement
3 - Left, forward
Shifter type
E - Electric 12V. Over hydraulic
Input gear
63 - Allison
Internal PTO ratio
59%
Transmission model
3000 TRV
MD-3066P
4700 RDS
HD-4070P
3000 RDS
3500 EVS
B300
4000 MH
4500 RDS
MD 3060P
3200 TRV
3500 RDS
4500 EVS
B500
4000 RDS
4000 TRV
3000 MH
4000 EVS
MD 3066P W-TOP OPENING
3000 EVS
4700 EVS
4700 OFS
HD 4060P
MD 3560P
4800 EVS
HD 4560P
B400
MD 3060P W-TOP OPENING
MD 3070PT
MD 3560P W-TOP OPENING
Transmission manufacturer
Clark
Allison
