Tool Box 24x24x36, Diamond Tread Aluminum, Underbody Truck Box, Locking Storage, Double Barn Door, Height 24" x Depth 24" x Width 36", Buyers 1702235 - UnitedBuilt Equipment

Buyers Products 1702235 24×24×36 Aluminum Barn-Door Tool Box

UGC 0012515
par Buyers
Disponibilité:
3 en stock | En stock
$0.00 - $0.00
$0.00
$719.99
$719.99 - $719.99
$719.99

Images du produit

Les images sont uniquement à titre de représentation et peuvent différer du produit réel.

Questions about this product?

Underbody mounting brackets are sold separately.

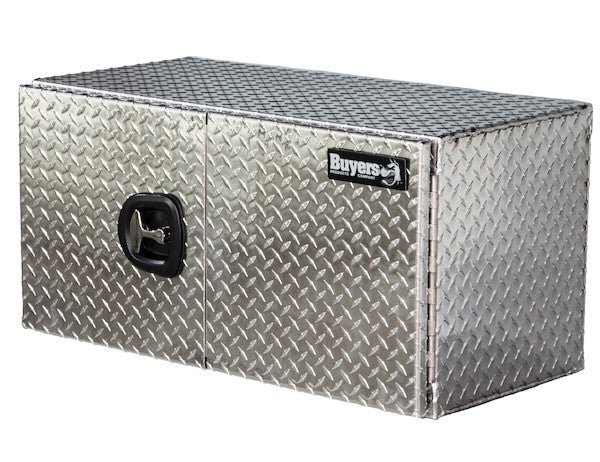

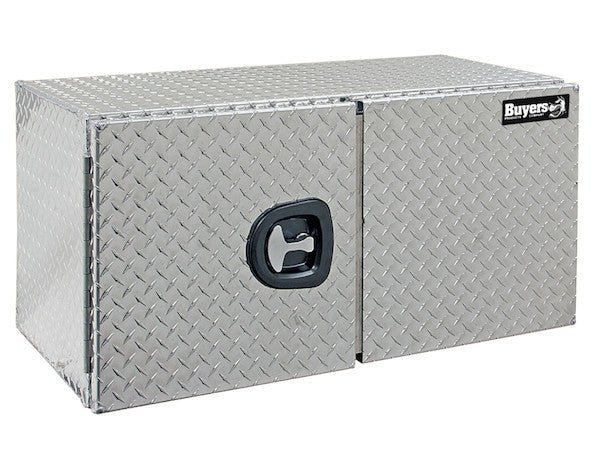

The Buyers Products 1702235 diamond-tread aluminum underbody tool box provides enclosed tool and equipment storage in a 24-inch-high by 24-inch-deep by 36-inch-wide configuration. It has two side-opening barn doors and a locking three-point compression latch.

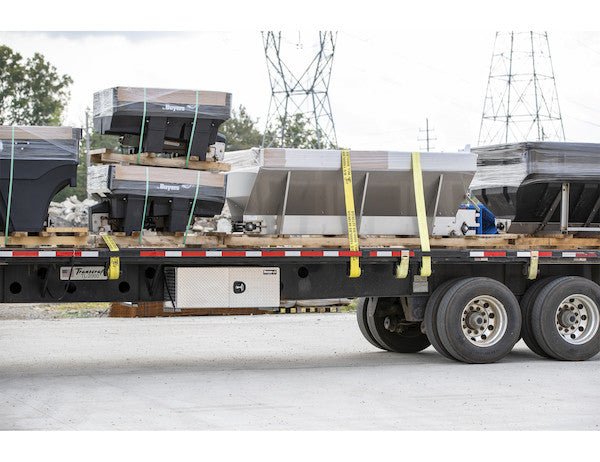

The barn-door layout gives you access through the front of the box without a center post dividing the opening. The handle can be positioned on the right or left to suit the installation. Mount the box on a suitable flat surface or use the required brackets for an underbody installation.

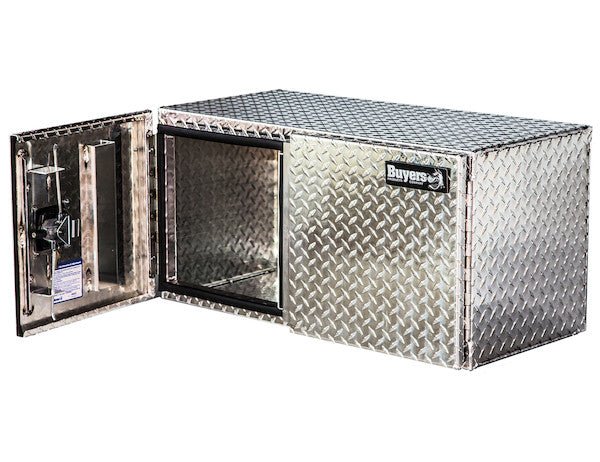

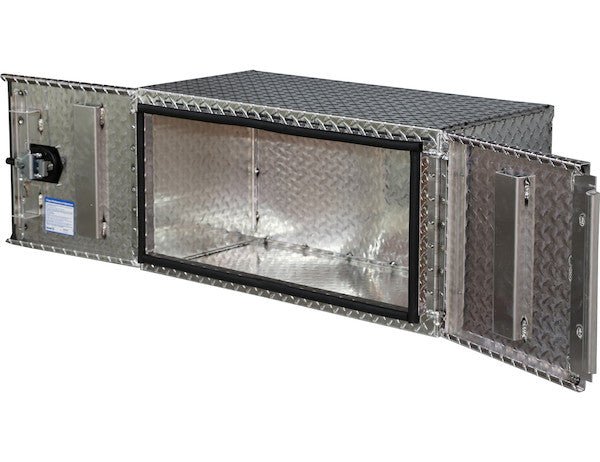

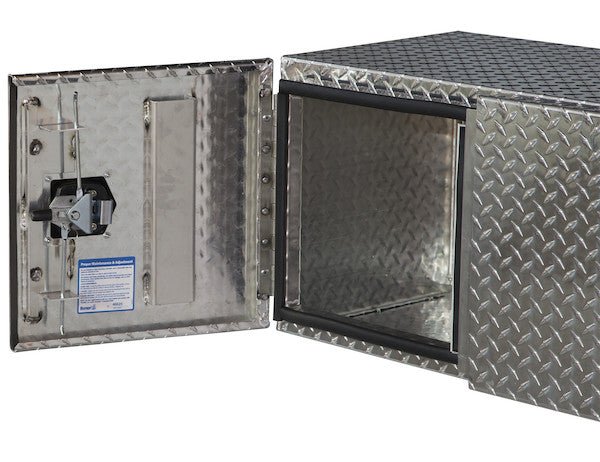

Clear access through two locking barn doors

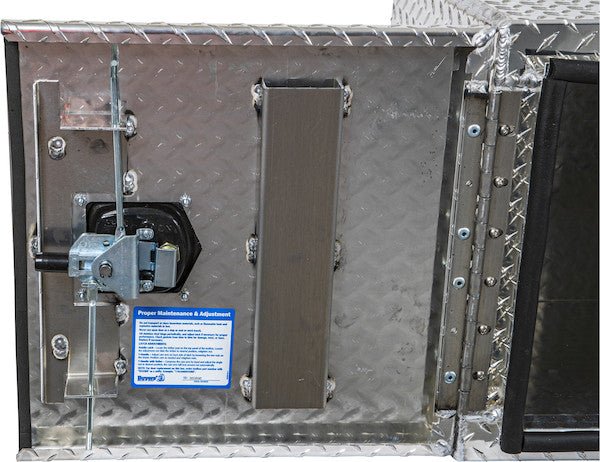

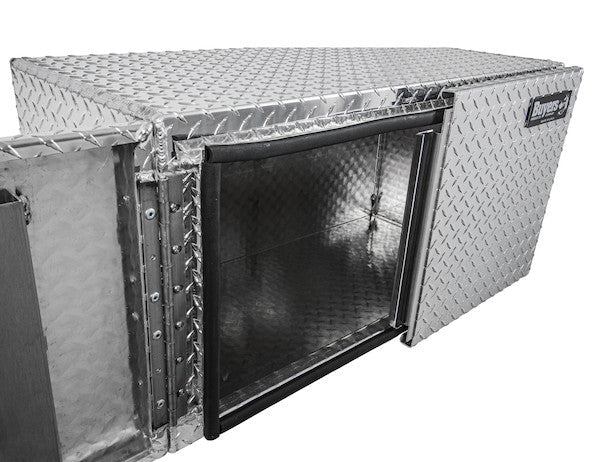

The 0.100-inch diamond-tread aluminum body and doors provide corrosion-resistant storage. A built-in rain gutter, D-bulb seal and compression latch help protect tools from weather and grime. The three-point latch pulls the double-door closure tight, while the continuous aluminum hinges support the side-opening arrangement.

Feature Benefit
Double barn doors with no center post Provide an unobstructed opening for loading and accessing equipment.
Three-point compression latch with lock Draws the doors closed and helps deter unauthorized access.
0.100 in. diamond-tread aluminum Provides corrosion resistance in both the body and doors.
Rain gutter and D-bulb seal Help keep moisture, dust and grime out of the storage space.
Right- or left-hand latch arrangement Allows the handle position to suit the installation.

Technical specifications

Specification Detail
Manufacturer part number 1702235
Dimensions 24 in. H × 24 in. D × 36 in. W
Door opening 21.30 in. H × 32.75 in. W
Body and door material 0.100 in. aluminum
Finish Diamond tread
Doors Two side-hinged barn doors
Latch One locking three-point compression latch
Hinge Continuous aluminum hinge with 1/4 in. pin
Seal and gutter D-bulb seal and built-in rain gutter
Shelf No shelf included

Box configuration and mounting selection

Component Selection or inclusion
Tool box assembly Aluminum body and two barn doors with locking three-point latch.

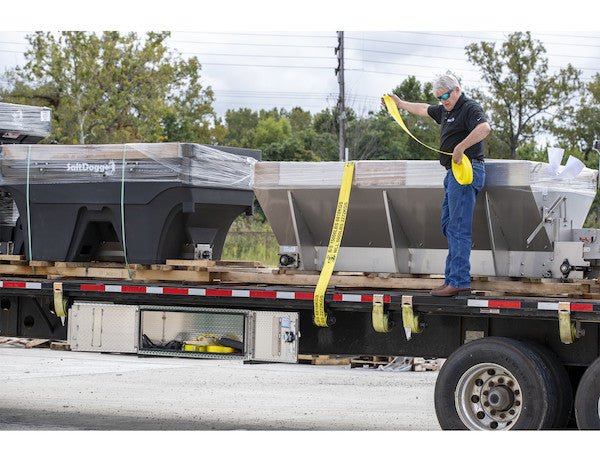

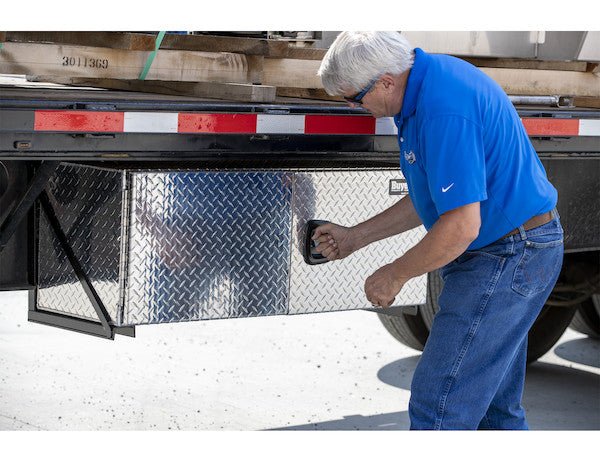

Underbody brackets Sold separately. Required for under-bed mounting.
Flat-surface mounting Suitable for a flat-surface installation with an appropriate mounting arrangement.
Internal shelf Not included; plan storage around the open interior.

Before ordering

Check Requirement
Installation space Confirm room for the 24 in. height, 24 in. depth and 36 in. width, plus door-swing and handle clearance.
Equipment access Compare the 21.30 × 32.75 in. opening with the tools and equipment to be stored.
Door and handle layout Choose the right- or left-hand handle arrangement for access at the mounting location.
Mounting support Select underbody brackets separately and confirm the attachment method for the truck body.
Bottom support Fully support the box bottom. The illustrated bracket installation requires at least 10 in. of frame overlap.
Permitted contents For small tools and equipment only. Do not store or transport flammables, explosives, hazardous materials, propane or acetylene tanks, or cutting torches.
Qualified installation Use a qualified truck-equipment installer and follow the Buyers mounting instructions before drilling or welding.
Maintenance Check latch and mounting hardware monthly. Lubricate hinges and inspect gaskets twice yearly.
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Need help choosing an underbody tool box and mounting arrangement? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your available mounting space, truck-body layout and required door access.
