Groove 90 Degree Elbow, 3" Groove x 1" FNPT Drain Port, Victaulic 10-DR F030010PDR - UnitedBuilt Equipment

Coude à rainure à 90 degrés, rainure de 3" x orifice de vidange FNPT de 1", Victaulic 10-DR F030010PDR

UGC 0011409
par Victaulic
Disponibilité:
7 en stock | En stock
$0.00 - $0.00
$0.00
$137.00
$137.00 - $137.00
$137.00

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

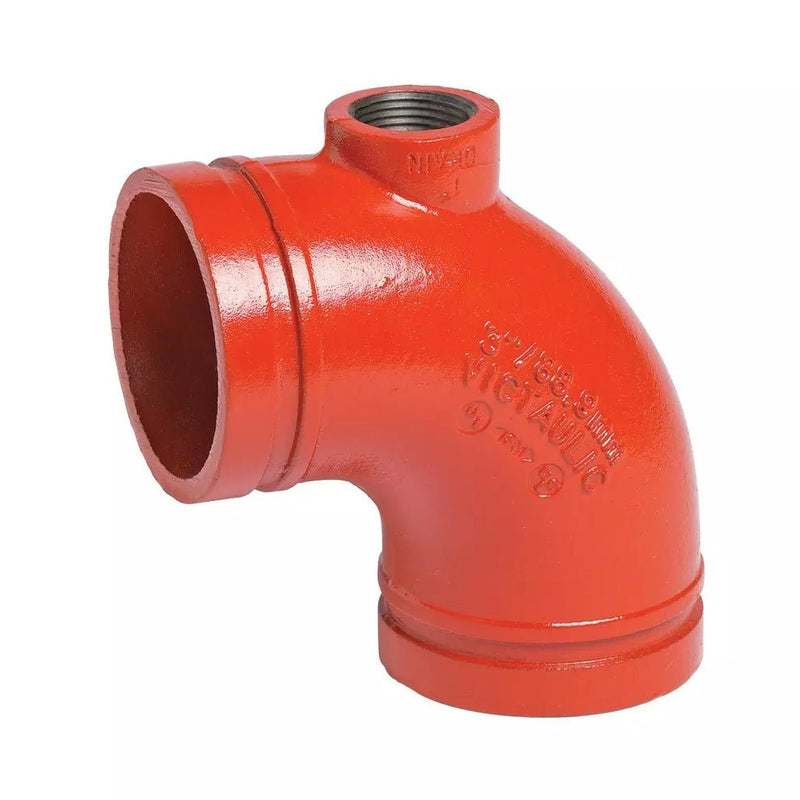

Victaulic No. 10-DR drain elbow, F030010PDR, combines a 3-inch OGS grooved 90-degree elbow with a 1-inch NPT drain outlet. It is designed for fire-protection standpipe layouts that need drainage at the change in direction.

The drain tapping is integral to the elbow, avoiding a separate threaded branch fitting at that point. Confirm that the drain location and adjoining components match your system design; this is a drain elbow, not a drain valve.

Turn the line and provide a drain connection

Feature Benefit
90° grooved elbow Changes the direction of the 3-inch line.
Integral NPT drain tap Provides a dedicated connection for the drain assembly.
OGS ends Joins matching Victaulic grooved components.

Technical specifications

Specification Detail
Manufacturer / model Victaulic No. 10-DR
Part number F030010PDR
Main connection size 3-inch nominal; 3.500-inch actual pipe outside diameter
Drain connection 1-inch female NPT
Body / finish ASTM A536 Grade 65-45-12 ductile iron / orange enamel
Pressure selection Ratings conform to Style 77 flexible couplings; verify the complete assembly.

Select the components for the installation

Component Compatible selection
Main line 3-inch Victaulic OGS pipe and suitable couplings/gaskets.
Drain assembly Matching 1-inch male NPT connection and application-appropriate drainage components.
Included item Drain elbow only; select couplings, drain valve and connecting pipe separately.

Before ordering

Check the installation drawing and required drain position before choosing the elbow. Do not use it with plain-end couplings.

Check What to confirm
Part identification Match F030010PDR, 3-inch main size and 1-inch NPT drain tap.
Application Verify standpipe/system design, operating conditions and any required approvals.
Butterfly-valve clearance When connecting through Style 741, 743 or 744 flange adapters, check valve-disc clearance to adjoining parts.
Installation safety Depressurize and drain the system and isolated sections before service; follow Victaulic installation instructions.

Need help selecting the correct drain elbow? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your pipe size, existing part number and application.
