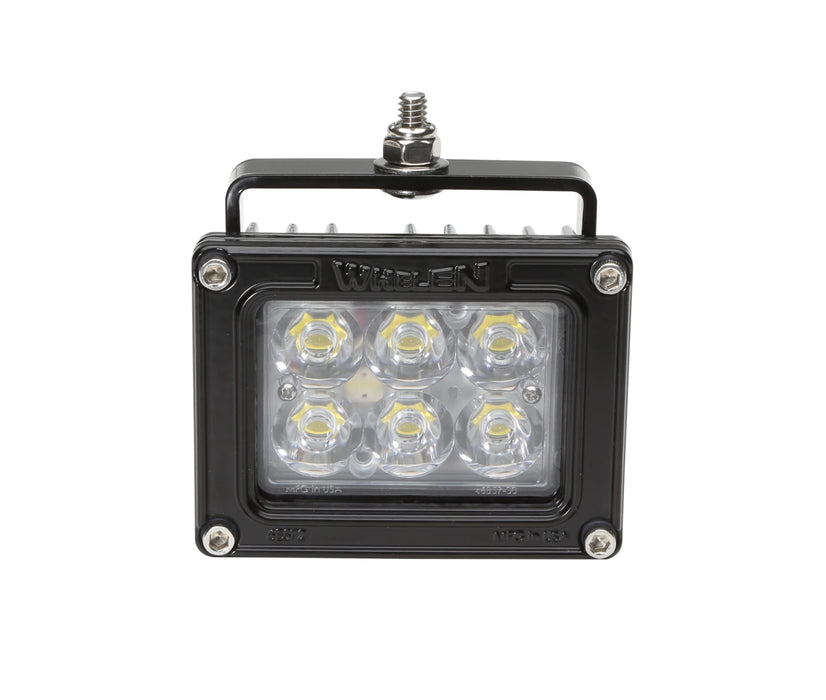

The Whelen NP6BB Pioneer Nano 6-LED work light provides white scene lighting in a compact, black housing. This 12 VDC, bail-mount configuration suits compatible vehicle installations where mounting space is limited and the beam needs to be aimed at a specific work area.
An 8° spot lens and an additional 40° × 20° flood lens are included, allowing you to select a concentrated beam or wider coverage. The removable lens retainer lets you change the optic without replacing the lighthead. Choose the pattern for your working distance, mounting position, and the area you need to illuminate.
Choose focused light or wider coverage
The six-LED light produces 2,552 total design lumens with a 5,700 K color temperature. Instant-on operation provides light without a warm-up delay. Its powder-coated aluminum housing, impact-resistant polycarbonate lenses, and IP67 rating suit exterior work-light installations.
| Feature |
Benefit |
| Two interchangeable optics |
Select an 8° spot or 40° × 20° flood pattern for the work area. |
| Adjustable bail mount |
Aim the light toward the area that needs illumination. |
| Instant-on LEDs |
Get light immediately when the circuit is switched on. |
| IP67-rated construction |
Provides dust and water resistance for exterior mounting. |
Technical specifications
| Specification |
Details |
| Manufacturer part number |
NP6BB |
| Series |
Pioneer Nano |
| Light source |
Six white LEDs |
| Operating voltage |
12 VDC |
| Average current |
1.5 A |
| Light output |
2,552 total design lumens |
| Color temperature |
5,700 K |
| Housing |
Black, powder-coated die-cast aluminum |
| Lens construction |
Hard-coated, injection-molded polycarbonate |
| Environmental rating |
IP67 |
| Mounting |

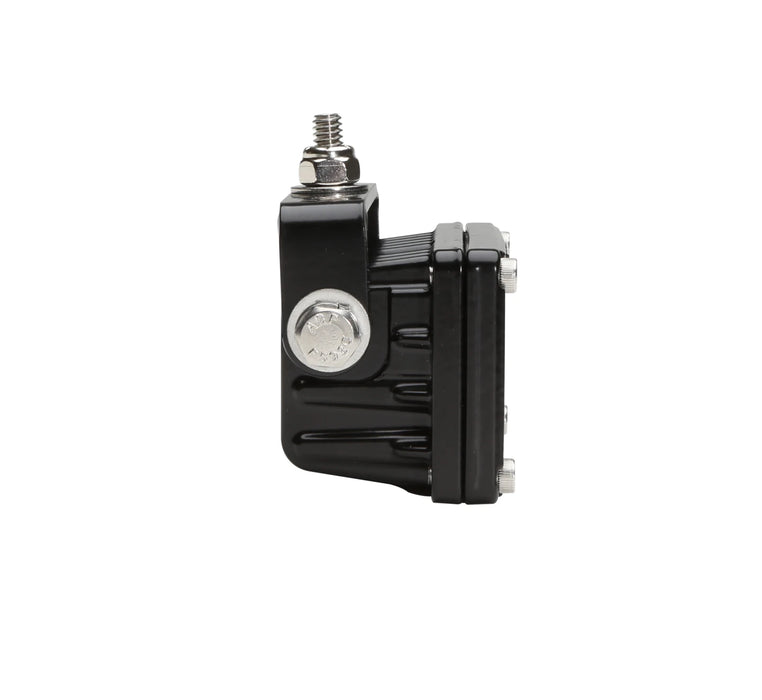

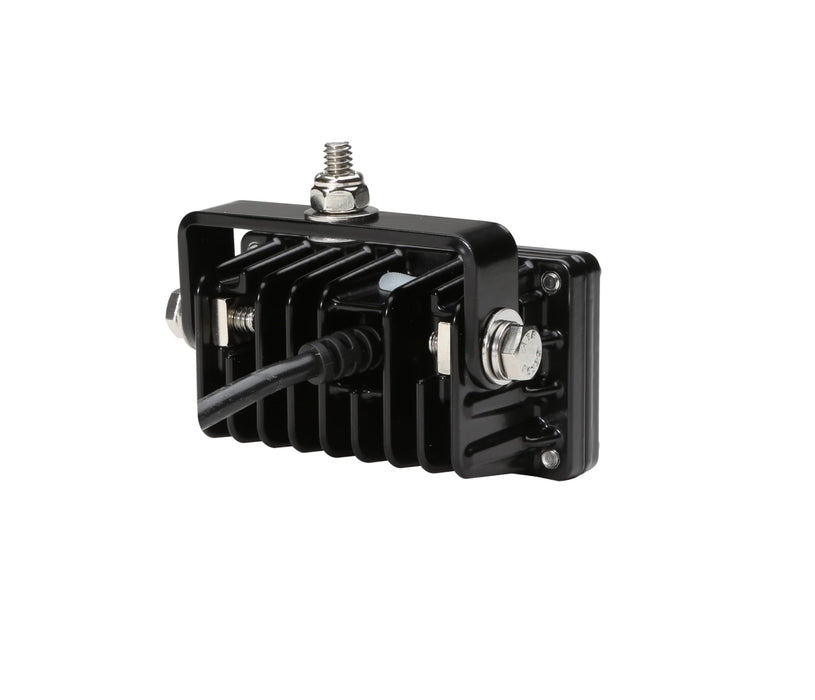

Powder-coated stainless steel bail bracket; 1/4-20 carriage-bolt mount |
| Width × height × depth |
3.50 in. × 3.00 in. × 1.77 in., in the illustrated bail-mount configuration |
Included components and installation planning
The NP6BB includes the lighthead, bail mount, invert mounting bracket, both optics, and a 6 ft cable. Plan the vehicle connection, switching, circuit protection, and any additional mounting arrangement for your installation. Check the cable route and available mounting space before choosing the final location.
| Component |
Selection details |
| NP6BB lighthead |
Six-LED light with black housing and standard 8° spot optic. |
| Additional optic |
40° × 20° flood lens included for wider coverage. |
| Mounting components |
Bail mount and invert mounting bracket included. |
| Cable |
6 ft cable included; check the route to the vehicle connection. |
| Vehicle electrical connection |
Select suitable switching, wiring, and circuit protection for the installation. |
Before ordering
| Check |
What to confirm |
| Electrical supply |
Confirm that your installation requires the 12 VDC NP6BB model. |
| Mounting space |
Check bracket clearance, aiming room, mounting-surface strength, and cable routing. |
| Beam pattern |
Select the spot or flood optic for your working distance and coverage needs. |
| Installation and cleaning |
Follow Whelen's supplied instructions. Protect exposed connections from moisture; clean the lens with soap and water, without a pressure washer. |
Need help selecting the right work light? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your vehicle voltage, mounting location, and lighting needs.
